1064nm Wavelength Band SM Fiber Coupled Laser
Description：This laser employs a butterfly-shaped semiconductor laser chip, with professionally designed drive and temperature control circuits ensuring safe operation and stable output power and spectral characteristics. It is suitable as a seed laser for high-power lasers and may also be used for production testing of optical components, available in either benchtop or modular packaging.
Applications： Scientific Research Equipment
Tags：Seed laser 1064nm Wavelength Band Laser
Wavelength：1064nm
Customizable：Customizable wavelengths within the 1024–1080 nm range.
Output Power：500mW
Model：MR-1064-SM
Dongz
Email: Sales@wxgphotonics.com
Description
This laser employs a butterfly-shaped semiconductor laser chip, with professionally designed drive and temperature control circuits ensuring safe operation and stable output power and spectral characteristics. It is suitable as a seed laser for high-power lasers and may also be used for production testing of optical components, available in either benchtop or modular packaging.
Features
- High output power
- Spectral stability
- Single-mode or polarisation-maintaining output
Applications
- Seed laser
- Optical testing
- Nonlinear optics research
Parameters
| Optical Specifications | Unit | Typical Value | Remarks | |
| Operating wavelength | nm | 1064 | 1024/1030/1053/1064/1070/1080 nm selectable | |
| Wavelength accuracy | nm | ±2 | ||

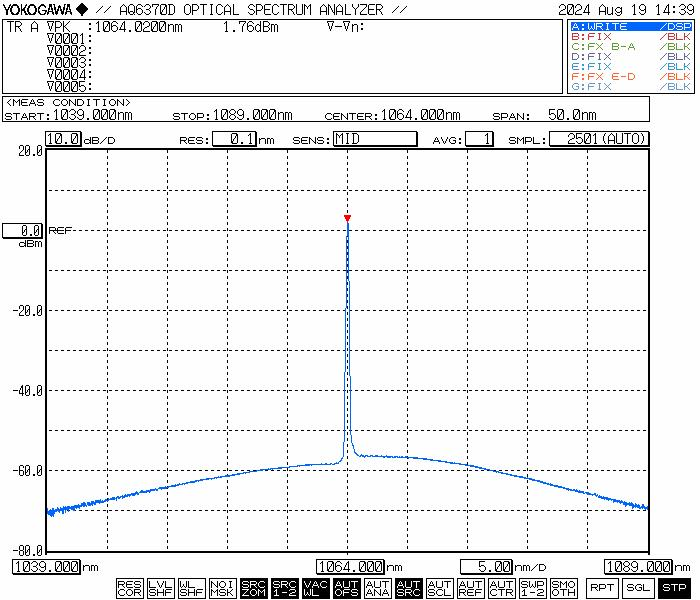

| Spectral bandwidth | nm | ＜0.1 | ||
| Operating mode | - | CW | Continuous light | |
| Output power | mW | 100/200/300/400/500 | Low light power | |
| W | 1/2/5/10 | High light power | ||
| Power adjustment range | - | 10%~100% | ||
| Short-term stability (15 minutes) | dB | ≤ ±0.02 | Equivalent ≤ ±0.5% | |
| Long-term stability (8 hours) | dB | ≤ ±0.05 | Equivalent ≤ ±1.2% | |
| Polarisation state | - | Random | Linear polarisation | |
| Polarisation extinction ratio (PER) | dB | - | >20 | |
| Fibre type | - | Hi-1060 | PM980 | |
| Fibre connector | - | FC/APC | FC/APC | Polarisation-maintaining default slow-axis alignment connector slot |
| Electrical and Environmental Parameters | Benchtop | Module | |||
| Control Method | Touchscreen/RS232 Serial Communication | RS232 Serial Communication | |||
| Communication Interface | DB9 female connector | DB9 female connector | |||
| Pwoer suplly | AC 100~240V , <150W | DC5V (low light output); DC12V (high light output) | |||
| low light output（mw） | 100/200/300/400 | 500 | 100/200/300/400/500 | 100/200/300/400/500 | |
| Dimensions or code | B1 | B2 | M20 | M27 | |
| high light output（dBm） | 30/33 | 37/40 | 30/33 | 37/40 | |
| Dimensions or code | B2 | B3 | M27 | M70 | |
| Operating temperature and humidity range | -5~+35°C；0~70% | ||||
| Ordering Information/Model | |||||
| Product Type | Operating wavelength (nm) | Output power | Output fibre type | Enclosure Type | |
| FL（Low power） | 1030/1064 | 100/200/300/400 /500(mW) | SM=HI-1060 | B1/B2/B3 = Desktop | |
| PM=PM980 | M20/M27/M70 = Module | ||||
| FLH（High power） | 30/33/37/40(dBm) | ||||
