1550nm Mid-Range Linear Sweep Laser Module (100GHz, 100mW) | FMCW & Test
The YB-TSL-2P linear sweep laser module is engineered to deliver the perfect balance of tuning range, precision, and cost-effectiveness. Operating at 1550nm, it features a 100GHz optical tuning range and 99.9999% ultra-high sweep linearity, paired with a stable 100mW output power. This makes it the ideal light source for mid-to-long range FMCW LiDAR, precision optical frequency domain reflectometry (OFDR) subsystems, and high-end optical communication test equipment. Its robust industrial design ensures reliable performance in demanding OEM integration scenarios.
Model： YB-TSL-2P
Wavelength：1550nm
Customizable：customized
Output Power：100mW
Contact：
Dongz
Email: Sales@wxgphotonics.com
Dongz
Email: Sales@wxgphotonics.com
1. Key Features
- 100GHz Tuning
Ideal balance for extended range FMCW LiDAR and high-resolution test applications. - 99.9999% Ultra-High Linearity
Ensures sub-millimeter precision for critical distance and strain measurements. - 100mW Stable High Power
Delivers consistent optical output for long-duration industrial operation. - Low Noise & High SMSR
Superior signal quality minimizes interference in coherent detection systems. - Dual Application Optimized
Perfectly suited for both FMCW sensing and optical communication test & measurement. - OEM Integration Ready
Compact size, standard FC/APC connector, and DB9 interface for seamless system integration.
2. Applications
- Frequency scan light source for FMCW LiDAR
- Optical measurement and instrumentation
- OFDR measurement
- Industrial metrology and fiber optical sensing
3. Specifications
Product Specifications and Key Parameters
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| Central Wavelength | lc | ~1550nm or customized in C-band | |||
| Wavelength Tuning Range | Dl | 1 | 100 | GHz | |
| Sweep Rate | F | 0.01 | 10 | kHz | |
| Sweep linearity | 99.99999 | % | |||
| Linewidth (Lorentzian) | FWHM | ~200 | kHz | ||
| Fiber Power Output | Pf | 100 | mW | ||
| Side Mode Suppression | SMSR | 55 | dB | ||
| Random Intensity Noise | RIN | -145 | dB/Hz | ||
| Operating Temperature | To | -20 | 60 | ºC | |
| Storage Temperature | Ts | -40 | 85 | ºC | |
| Operating Humidity | % | 5 | 85 | ||

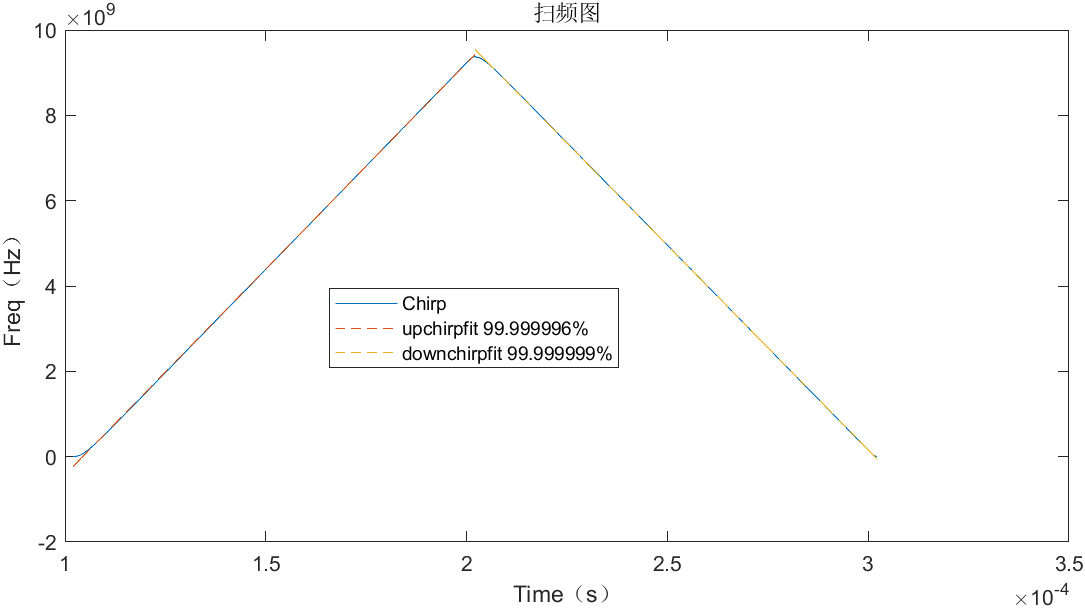

Measured Sweep Linearity:＞99.99999%

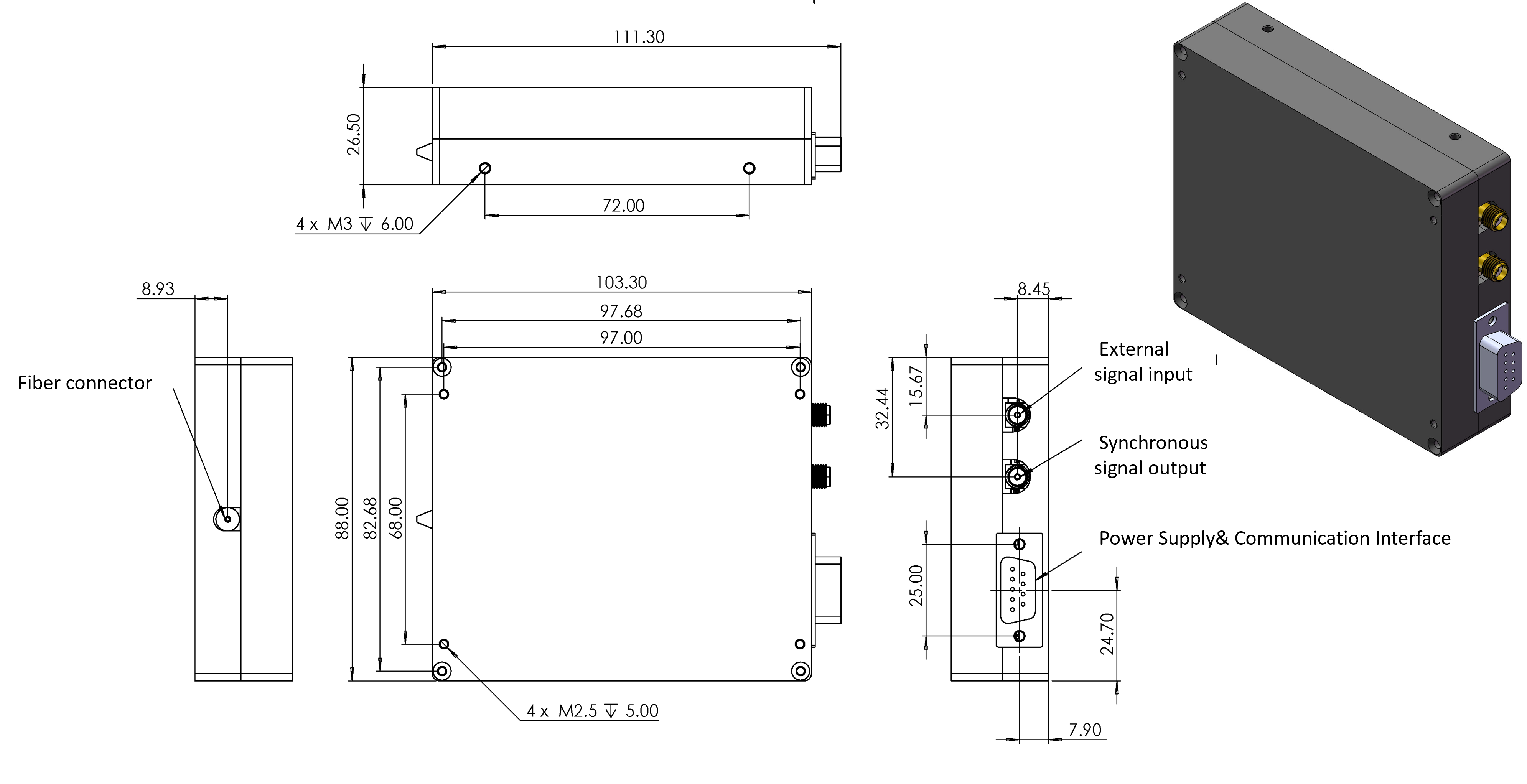

4. Mechanical and Others
| Dimensions | L×W×H=111.3×88×26.5mm |
|---|---|
| Fiber Type | SMF |
| Fiber Connector | FC/APC |
| Power Supply& Communication Interface | DB9 |
| Synchronous signal output | OUT(SMA) |
| External signal input | IN(SMA) |
