1550nm High-Power Linear Sweep Laser Module (10GHz, 100mW) | FMCW LiDAR
This YB-TSL-1P linear sweep laser module is engineered for high-performance FMCW LiDAR and precision measurement systems, featuring a 10GHz wavelength tuning range, 99.99999% ultra-high sweep linearity, and stable 100mW output power. With fast sweep rates (1-300kHz) and narrow linewidth (typ. 15kHz), it delivers micrometer-level ranging resolution, making it the optimal light source for FMCW LiDAR, industrial metrology, optical measurement instruments, and fiber optic sensing applications. Flexible parameter customization is available to meet diverse OEM integration requirements.

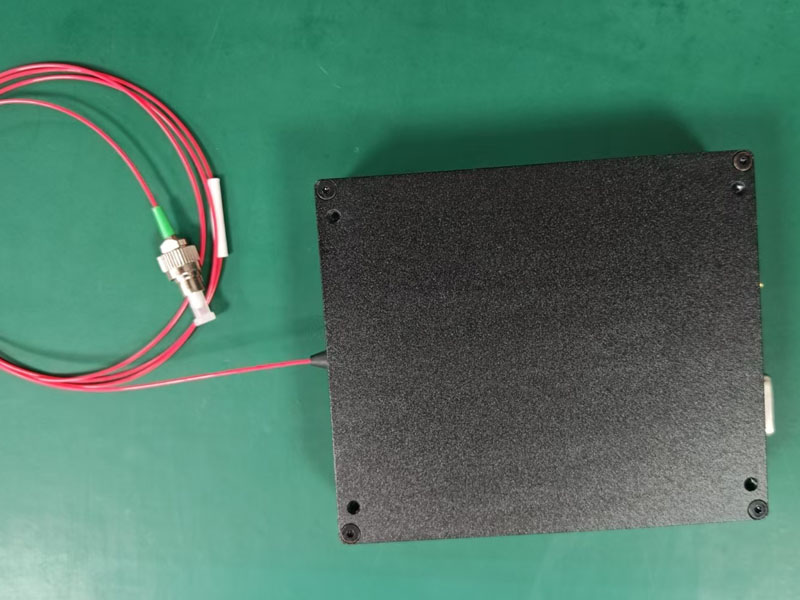

Model： YB-TSL-1P
Dongz
Email: Sales@wxgphotonics.com
1. Key Features
- 10GHz Wide Tuning Range
Supports 1-10GHz sweep range, enabling long-distance ranging and high-resolution detection for FMCW LiDAR - 99.99999% Ultra-High Linearity
Exceptional sweep linearity ensures micrometer-level measurement accuracy, outperforming industry standards - 100mW High Power & Fast Sweep
Stable 100mW output with 1-300kHz sweep rate (triangular wave) for high-speed dynamic sensing scenarios - Narrow Linewidth & Low Noise
Typ. 15kHz Lorentzian linewidth and ≤-145dB/Hz RIN for clear signal detection and low interference - Flexible Customization
Customizable linewidth, output power, sweep range, and sweep rate to match specific system requirements - Industrial-Grade Reliability
Operates stably in -10℃~60℃ wide temperature range, with FC/APC connector and compact design for easy integration
2. Applications
- FMCW LiDAR
- Optical measurement and instrumentation
- Industrial metrology and Fiber optical sensing
3. Specifications
Product Specifications and Key Parameters
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| Central Wavelength | lc | ~1550nm or customized in C-band | |||
| Wavelength Tuning Range | Dl | 1 | 10 | GHz | |
| Sweep Rate | F | 1 | 300 | kHz | |
| Sweep linearity | 99.99999 | % | |||
| Linewidth (Lorentzian) | FWHM | 15 | kHz | ||
| Fiber Power Output | Pf | 100 | mW | ||
| Side Mode Suppression | SMSR | 55 | dB | ||
| Random Intensity Noise | RIN | -145 | dB/Hz | ||
| Operating Temperature | To | -10 | 60 | ºC | |
| Storage Temperature | Ts | -40 | 85 | ºC | |
| Operating Humidity | % | 5 | 85 | ||

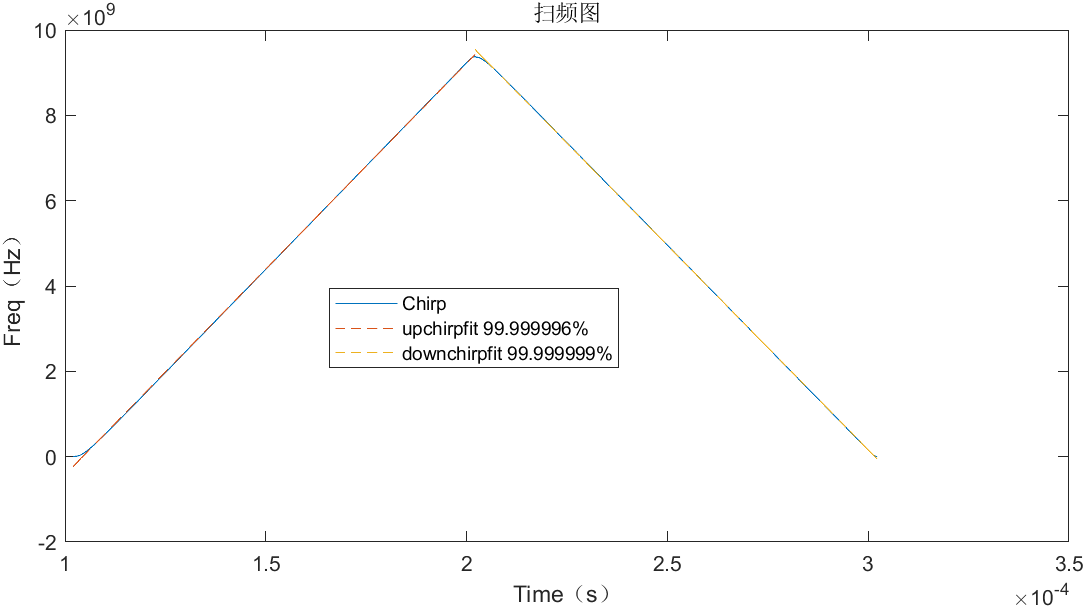

Measured Sweep Linearity:＞99.99999%
4. Mechanical and Others
| Dimensions | L×W×H=111.3×88×26.5mm |
|---|---|
| Fiber Type | SMF |
| Fiber Connector | FC/APC |
| Power Supply& Communication Interface | DB9 |
| Synchronous signal output | OUT(SMA) |
| External signal input | IN(SMA) |
5、Customizable Parameters
We can customize parameters according to user requirements. Below are parameters we frequently customize for clients.
If you have other parameter needs, please feel free to contact us.
| Option No. | Linewidth | Output optical power | Sweep Frequency Range | Sweep rate |
| 1 | 13k | 20mW | 5G | 100k |
| 2 | 15k | 100mW | 5G | 100k |
| 3 | 14k | 100mW | 2G | 200k |

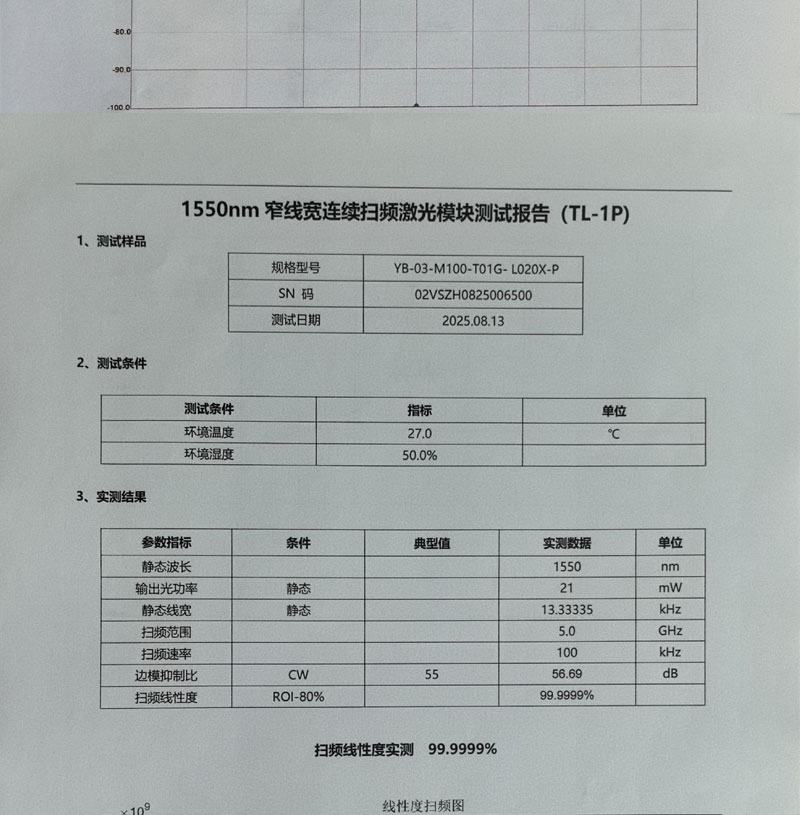

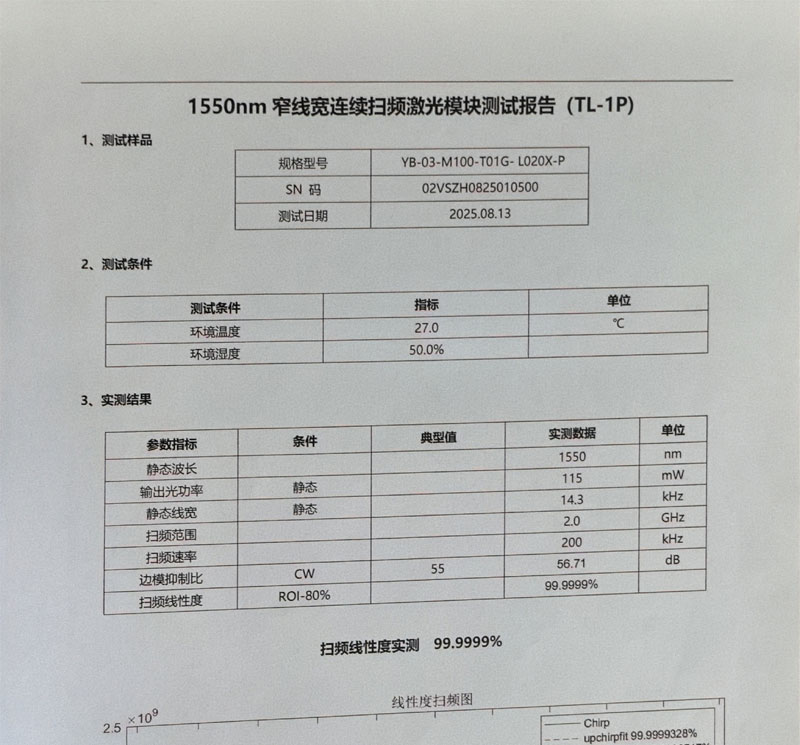

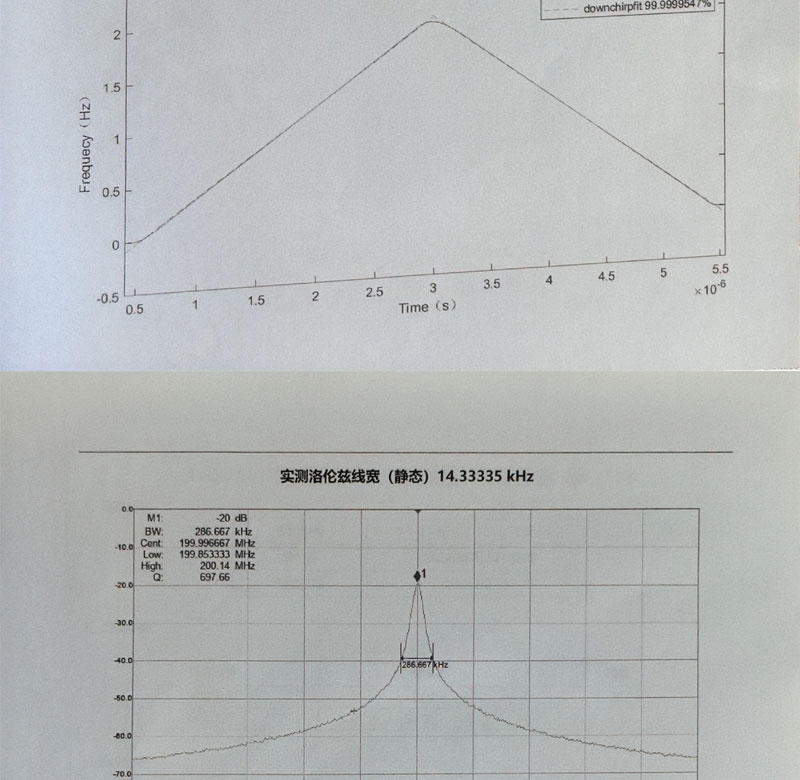

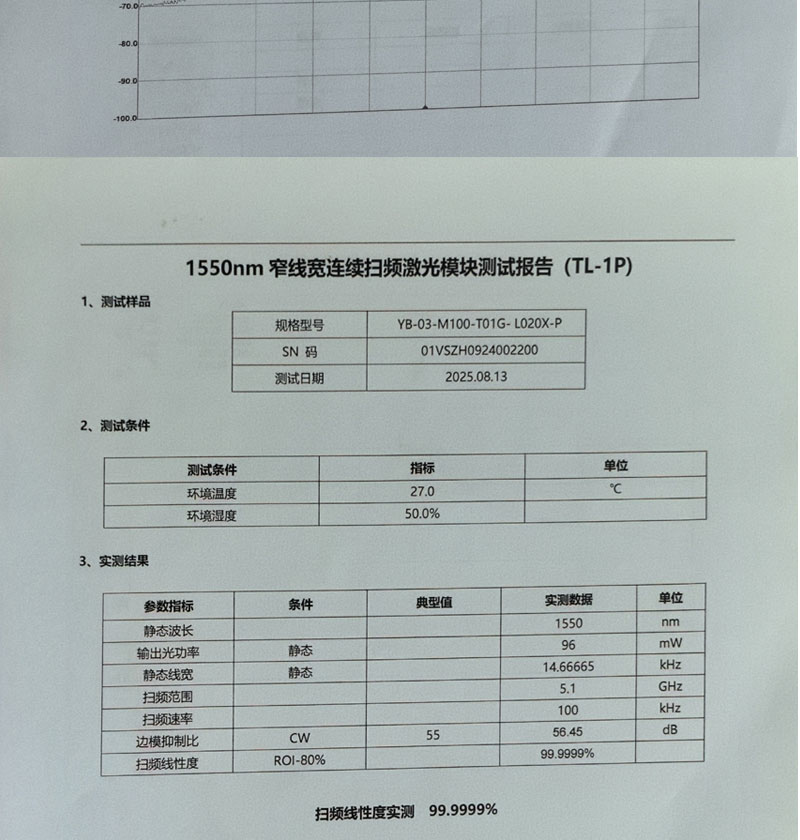

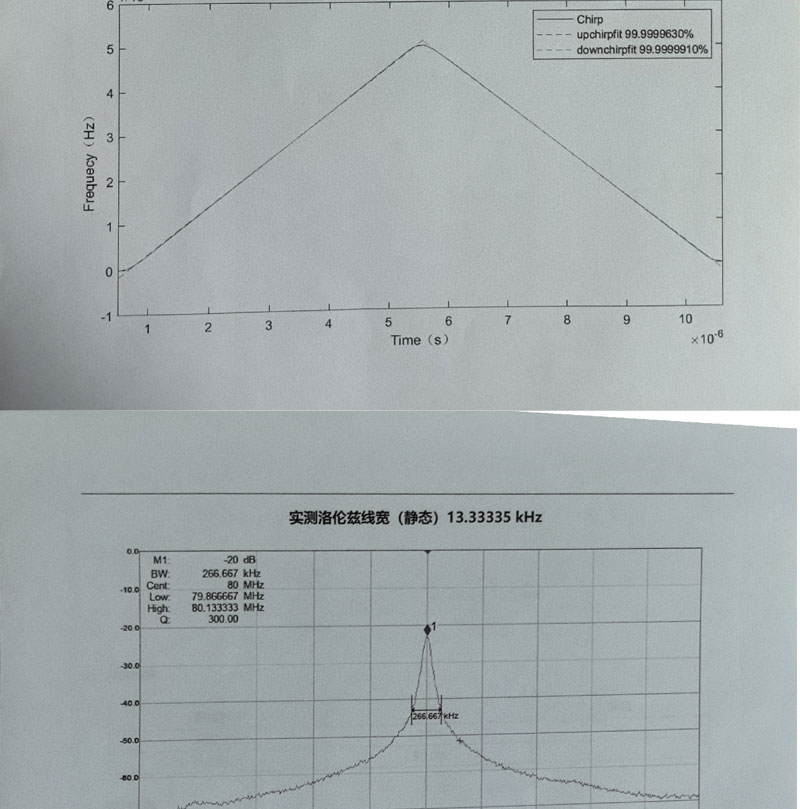

6.Excerpt from Customised Client Testing Declaration:
