Analog Optical Receiver with Pigtail
Product Description：this is a small size optical receiver with high response rate, high operating frequency up to 24GHz, wavelength 800-1650nm, commonly used in mobile communication, antenna remote control, distributed antenna system, etc.
Tags： small size optical receiver high response rate 24GHz 800-1650nm mobile communication antenna remote control distributed antenna system
Applications： RF over Fiber (ROF)
Model：OM-RxC000Nx-OWxx
Features
- Small size：22mm*17mm*8.9mm
- High responsivity: typical 0.8 mA/mW @ 1310nm
- Operating frequency up to 24GHz
- Wide wavelength range from 800nm to 1650nm
- DC-coupled or AC-coupled optional and matched to 50 Ohm
Applications
- 5G/4G/3G Mobile Communication
- Antenna remoting
- Satellite communications
- GPS signal transport
- Pulse signal transport
- Distributed antenna system
- High speed test and measurement
- Video signal distribution in HFC and FTTx Nodes
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Min. | Max. | Unit |
|---|---|---|---|---|---|
| Operating Temperature | Topr | -40 | +70 | °C | |
| Storage Temperature | Tstg | -40 | +85 | °C | |
| Saturation Input Power | Ps | -- | 10 | mW | |
| Forward Current | If | -- | 10 | mA | |
| Reverse Bias | Vr | PD | - | 20 | V |
| DC Operating Voltage | Vd | +5V pin | +4.7 | +5.5 | V |
| Dark Current | Id | 10 | nA | ||
| Relative Humidity | Hr | -- | -- | 95 | % |
| Pressure | Pr | -- | 86 | 106 | kPa |
| ESD | Human body model | - | Class 1B |
Note：Operation beyond these absolute maximum conditions may degrade device performance, lead to device failure,
shorter lifetime, and will invalidate the device warranty.
Electrical and Optical Characteristics
| Parameter | Symbol | Test Condition | Min | Typ. | Max | Unit | |
| Wavelength Range | λ | 800 | -- | 1650 | nm | ||
| Responsivity | R | 1310nm | 0.7 | 0.8 | -- | mA/mW | |
| 1550nm | 0.7 | 0.85 | -- | ||||
| Frequency Bandwidth（1） | BW | RCC | 0.01 | -- | 6 | GHz | |
| RXC | 0.01 | -- | 12 | ||||
| RUC | 0.01 | -- | 18 | ||||
| RKC | 0.01 | -- | 24 | ||||
| Ripple of Passband（2） | Flatness | RCC,0.1GHz~6GHz | -- | ±1 | ±1.2 | dB | |
| RXC,0.1GHz~12GHz | -- | ±1.2 | ±1.5 | ||||
| RUC,0.1GHz~18GHz | -- | ±1.5 | ±2 | ||||
| RKC,1GHz~24GHz | -- | ±1.7 | ±2.5 | ||||
| RF Return Loss | RL | RCC,0.1GHz~6GHz | -- | -12 | -9 | dB | |
| RXC,0.1GHz~12GHz | -- | -10 | -7 | ||||
| RUC,0.1GHz~18GHz | -- | -10 | -5 | ||||
| RKC | 0.1GHz~18GHz | -- | -10 | -5 | |||
| 18GHz~24GHz | -- | -5 | -3 | ||||
| Back Reflection | ORL | PD | -- | -35 | -- | dB | |
| Dark Current | Id | PD | -- | 5 | 10 | nA | |
| Operating Voltage | Vd | +5V Pin | 4.8 | 5 | 5.2 | V | |
| Power Consumption | Pdiss | +5V power supply | -- | 25 | 50 | mW | |
Note：（1）AC Coupled and the lower start frequency such as 9kHz is available upon request.
（2）The ripple of passband has deducted the ripple of optical Tx.
Fiber Specification
| Parameter | Typ. | Unit |
|---|---|---|
| Fiber Type | Single Mode | |
| Optical Connector Type | FC/APC（1） | |
| Pigtail Length | 1±0.1 | m |
| Minimum Bend Radius | 30（2） | mm |
PIN Function
| PIN | Name | Direction | Note |
|---|---|---|---|
| 1 | GND | Ⅰ | GND |
| 2 | +5V | Ⅰ | +5V DC Power |
| 3 | RF | O | RF Out, SMA Female,50Ω |
Optical Receiver Top View

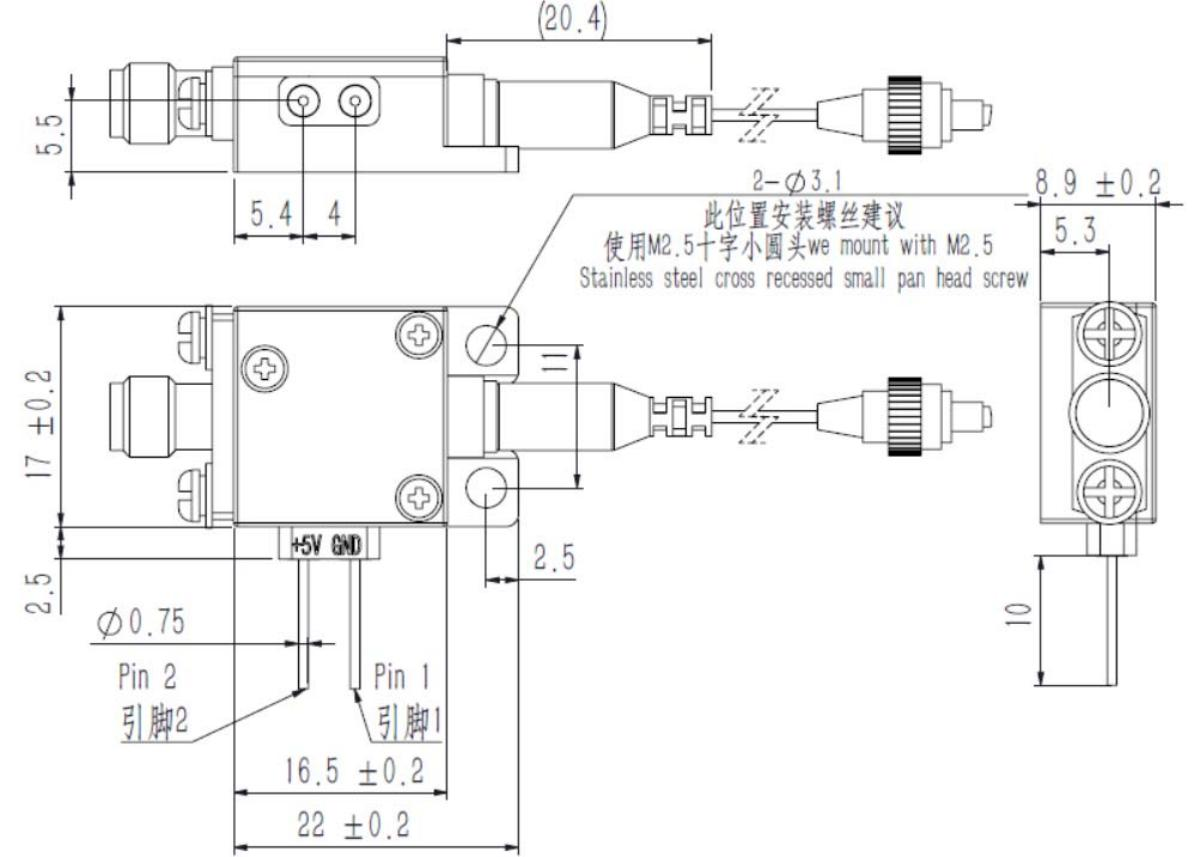

Mechanical (unit: mm)
Note ：Do not squeeze the M2.5 screws of the module to the optical component, otherwise it may cause the optical component to break.
Ordering Information
| OM | - | RxC | 000 | N | F | - | O | W | xx |
|---|---|---|---|---|---|---|---|---|---|
| OM： Optical Module | Frequency Range（1）： RCC：0.01~6GHz RXC： 0.01~12GHz RUC： 0.01~18GHzRKC：0.01~24GHz | Wavelength：000:800nm ~ 1650nm | Optical Connector and Fiber Type（2）：F： FC/APC SM | Operating Temperature（3）W: -40 to 70℃ | Special：00： AC-coupled 01： DC-coupled |
Note:(1)AC-coupled and the lower start frequency such as 9kHz is available upon request；
（2）Other optical connector and fiber type is available upon request;
(3) Other temperature range is available upon request.
