1550nm Balanced Photodetector |Wind Radar
Description：Wind radar, BPD balanced photodetector for FMCW radar with 300M bandwidth, 18k gain
Applications： Fiber Optic Sensing Lidar Scientific Research Equipment
Tags：Wind measurement radar BPD Radar BPD Outlier detection
Wavelength：1550nm
Model：wo-bpd-1550-300m
Dongz
Email: Sales@wxgphotonics.com
Product Features
- Very small case size, easy to realize equipment miniaturization
- 300M bandwidth, 18K gain
- Suitable for LIDAR, FMCW radar and other scenarios
Specification
| Model | BPD465C-200M | BPD465C-300M |
| Material | InGaAs | InGaAs |
| Wavelength Range | 1000-1700nm | 1000-1700nm |
| Input Connector | FC法兰 | FC法兰 |
| Response | 0.9A/W @1550nm | 0.9A/W @1550nm |
| Common mode rejection ratio | >25dB | >25dB |
| Bandwidtha | 200MHz | 300MHz |
| Rise timea | 1.8ns | 1.2ns |
| Gain b | 30kV/A | 18kV/A |
| Saturated optical power | 148uw | 220uw |
| Noise voltagea | 6mV RMS | 4mV RMS |
| Noise equivalent powerc | 14.6pW/√Hz | 16.5pW/√Hz |
| Maximum output amplitudea | ±2.0V | |
| Operating voltage | +12V | |
| Operating current | <200mA | |
| Output impedance | 50Ω | |
| Output coupling method | AC | |
| Output connector | SMA female | |
| Operating Temperature | -20~65℃ | |
| Storage Temperature | -40~85℃ | |

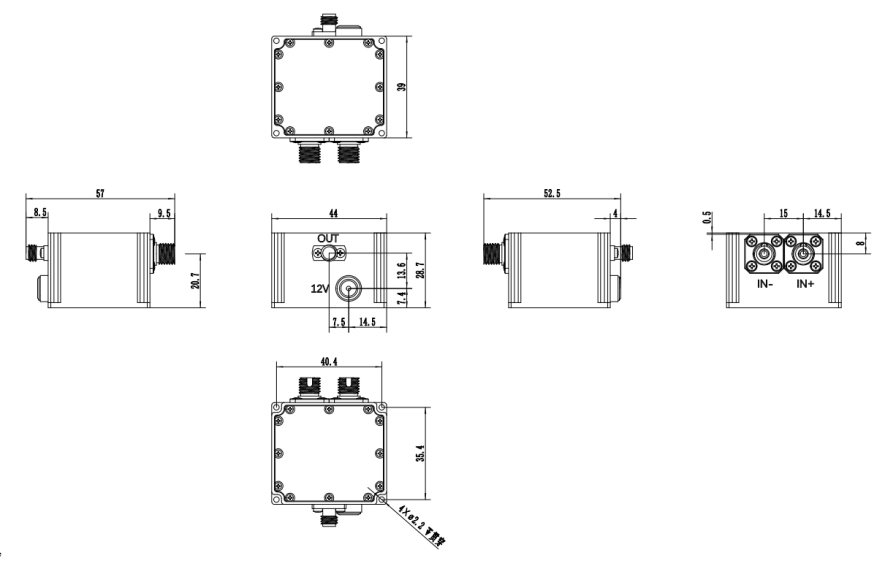

Mechanical dimensions
Shipment list
| No. | Name of material | Quantity | Unit | Remarks |
| 1 | Photodetector | 1 | PCS | |
| 2 | SMA to BNC RF Cable | 1 | PCS |
