C-band ASE Broadband Light Source
Description：The fibre-optic ASE broadband light source is a non-coherent light source, generated by spontaneous emission from erbium-doped quartz fibre pumped by a semiconductor laser. It incorporates spectral flattening technology to achieve a broadband, flat spectrum. The light source covers the C-band wavelength range (1528 nm to 1569 nm) with spectral flatness exceeding 2 dB.
Applications： Fiber Optic Sensing
Tags：C-Band ASE Broadband Light Source laser
Wavelength：1550nm
Customizable：Customizable wavelengths within the 1528–1569 nm range.
Output Power：500mW
Model：MR-ASE-C
Dongz
Email: Sales@wxgphotonics.com
Description
The fibre-optic ASE broadband light source is a non-coherent light source, generated by spontaneous emission from erbium-doped quartz fibre pumped by a semiconductor laser. It incorporates spectral flattening technology to achieve a broadband, flat spectrum. The light source covers the C-band wavelength range (1528 nm to 1569 nm) with spectral flatness exceeding 2 dB. It is coupled out via single-mode fibre with continuously adjustable power output. Polarisation-maintaining fibre output cables are available as an option. Suitable for applications such as fibre optic sensing, it can be supplied in multiple packaging formats.
Features
- Broad spectral range
- High flatness
- Adjustable power
- High stability
Applications
- Fibre Optic Sensing
- Medical Imaging
- Production Testing
Parameters
| Optical Specifications | Unit | Typical Value | Remarks | ||||||
| Spectral range (2dB bandwidth) | nm | 1528-1569 | ±0.5 nm tolerance | ||||||
| Output optical power | mW | 10 | 20 | 50 | 100 | 200 | 400 | 500 | |
| Spectral power density | dBm/nm | -6 | -3 | 1 | 4 | 7 | 10 | 11 | Mean value |
| Power modulation range | - | 10%~100% | Power is adjustable whilst maintaining flatness | ||||||
| Spectral flatness | dB | ≤2 (10~200mW)；≤3 (400~500mW) | |||||||
| Spectral ripple | dB | ≤0.1 | |||||||
| Output isolation | dB | >35 | |||||||
| Short-term stability (15 minutes) | dB | ≤ ±0.02 | Equivalent ≤ ±0.5% | ||||||
| Long-term stability (8 hours) | dB | ≤ ±0.05 | Equivalent ≤ ±1.2% | ||||||
| Polarisation state | - | Completely non-polarised | Linear polarised | Polarisation-maintaining version maximum power: 200mW | |||||
| Polarisation extinction ratio (PER) | dB | ≤0.2 | ≥23 | ||||||
| Fibre and connectors | - | SMF-28 | PM1550 | FC/APC | |||||
| Electrical and Environmental Parameters | Benchtop | Module | ||||||
| Optical Power | 10/20/50/100/200/400 | 500 | 10/20/50/100/200 | 400 | 500 | |||
| Control Method | Touchscreen/RS232 | RS232 Serial Communication | ||||||
| Serial Communication | ||||||||
| Communication Interface | DB9 female connector | ZH1.5-3PIN（M15）；DB9 female connector（M20，M31） | ||||||
| Power Supply | AC 100~240V ,30W | DC 5V3A | DC12V3A | |||||
| Dimensions or Code | B1 | B2 | M15；M20 | M20 | M31 | |||
| Operating Temperature and Humidity Range | -5~+35°C；0~70% | |||||||
| Ordering Information/Model | |||||
| MR-ASE | Spectral Range | Output Power (mW) | Power Adjustable (Optional) | Output Fibre Type | Package Type |
| C | 10/20/50/100/200 | T | SM=SMF-28 | B1/B2=Benchtop | |
| /400/500 | PM=PM1550 | M15/M20/M31=Module | |||

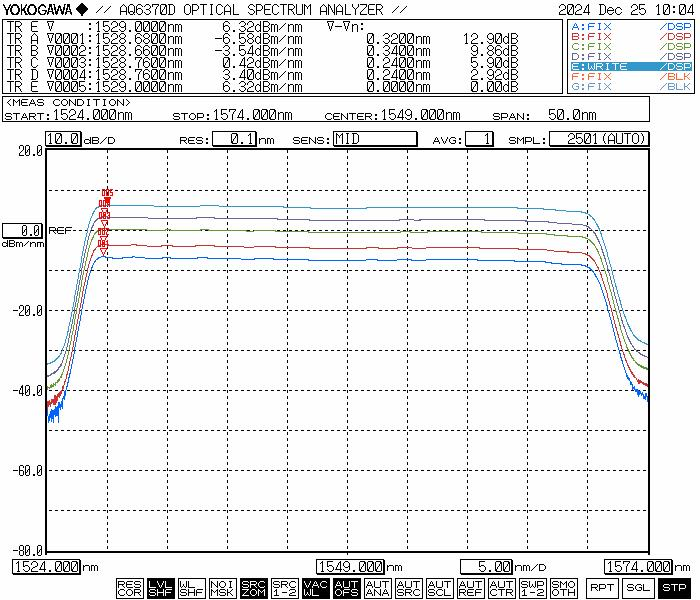

Spectral and power density for 10/20/50/100/200mW models
