1310nm Narrow Linewidth Single-Frequency Laser Module, 20mW Power
Description：This 1310nm narrow-linewidth laser module can be used in lidar, coherent detection, fiber optic sensing, medical photonics, scientific research equipment, 3D mapping, and other fields.
Applications： Fiber Optic Sensing Lidar
Tags：Narrow Linewidth Laser Module
Wavelength：1310nm
Output Power：20mW
Model：unl-1310nm-20k-20mw-x
Dongz
Email: Sales@wxgphotonics.com
2. Key Features
- Narrow linewidth (10–20 kHz)
- Single-frequency center wavelength at 1310 nm, supporting customization for any wavelength within the C-band
- Stable output power and wavelength
- High optical output power
- Low RIN noise
- Low power consumption
- Low-noise, high-precision circuit design
3. Product Applications
- Lidar
- Coherent Detection
- Fiber Optic Sensing
- Medical Photonics
- Scientific Research Equipment
- 3D Mapping
4. Product Specifications
Optical and Electrical Parameters (TLD=25°C)
| Params | Symbol | Conditions | Min. | Type. | Max. | Unit |
|---|---|---|---|---|---|---|
| Threshold current | Ith | CW | 35 | mA | ||
| Center wavelength | λC | 1305 | 1310 | 1315 | nm | |
| Output fiber optic power | Pf | CW | 20 | mW | ||
| Lorentzian line width* | FWHM | CW | 20 | kHz | ||
| Relative Intensity Noise | RIN | ≥1kHz | -120 | dB/Hz | ||
| Edge Mold Suppression Ratio | SMSR | CW | 55 | dB | ||
| Polarization Extinction Ratio | PER | CW | 20 | dB | ||
| Optical Isolation | ISO | 50 | dB | |||
| TEC Setpoint Temperature | TTEC | CW | 15 | 45 | ℃ | |
| Operating Temperature | To | -20 | 60 | ℃ | ||
| Operating Humidity | % | 5 | 85 | % |

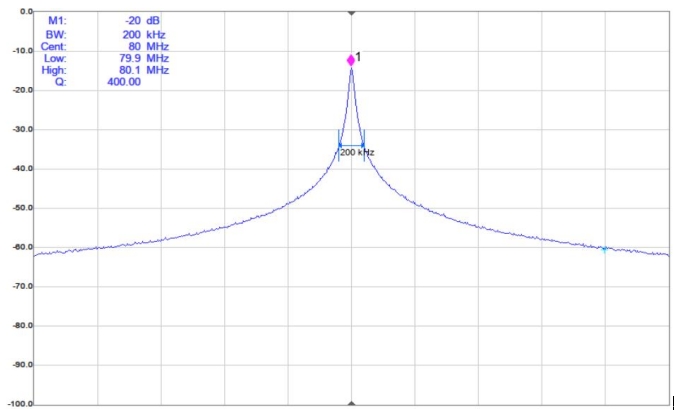

*Determination of Lorentz Line Width Using the Delayed External Heterodyne Method
Typical Lorentz line width (10 kHz)
5. Electrical and Physical Parameters

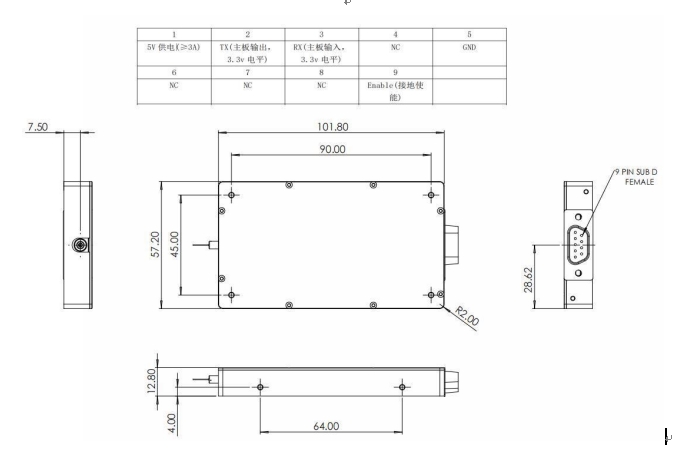

Dimensions and Electrical Specifications
| Params | Values | Unit |
|---|---|---|
| External Dimensions | L×W×H=101.8×57.20×12.80 | mm |
| Built-in pigtail type | SMF/PMF | |
| Connector | FC/APC | |
| Power Supply | DC 5V/3A | |
| Data Interface | DB9 is defined as shown in the figure above. | |
| Safety Control | Interlock |
