S-Mini Analog Optical Transmitter with Pigtail
Product Description：This is an ultra-small size, low power consumption without cooling, operating frequency up to 6GHz, with optical power monitoring and control of analog optical transmitter module, widely used in satellite communications, GPS signal transmission, distributed antenna systems, 5G communications, etc.
Tags：Mini size 6GHz APC 5G GPS Distributed antenna system
Applications： RF over Fiber (ROF)
Model：OM-TxCxxxNx-OSxx
Features
- Supper-Mini size ：31.3mm*17mm*10mm（L*W*H）
- Un-cooled（without TEC），low power consumption
- CWDM wavelength optional
- Wide operating frequency from 10MHz to 6GHz
- Flat frequency response
- Have optical power monitoring function
- Automatic optical power control（APC）
- Broadband low noise amplifier（LNA） integrated（optional）
- Bias-T circuit integrated for power supply through the RF SMA connector（optional，see the schematic diagram below）
- RoHS compliant and CE certification
- Excellent EMI/EMC design

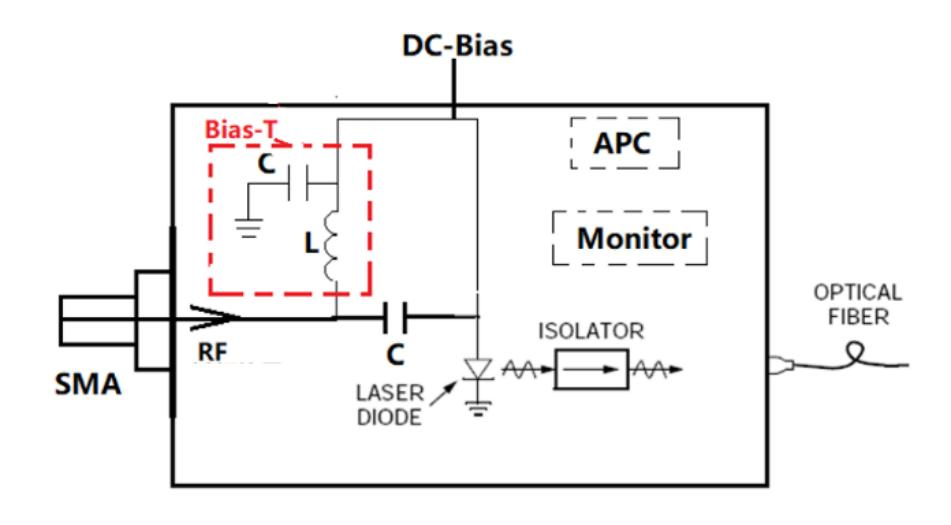

Bias-T Schematic Diagram
Application
- WiMAX / 4G / 5G
- Satellite communications
- Mobile backhaul
- GPS signal transport
- All-Digital QAM network
- Data and video distribution
- Distributed antenna system
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Min. | Max. | Unit |
|---|---|---|---|---|---|
| Operating Case Temperature | Topr | -20 | +70 | °C | |
| Storage Temperature | Tstg | -40 | +85 | °C | |
| DC Operating Voltage | Vd | +5V Pin | +4.7 | +5.5 | V |
| RF Input Power | Prf | Without LNA | -- | 20 | dBm |
| With LNA | -- | 15 | |||
| Output Optical Power | Ps | CW | -- | 12 | mW |
| Relative Humidity | Hr | -- | 95 | % | |
| Pressure | Pr | 86 | 106 | kPa | |
| ESD | Human body model | Class 1A |
Note ：Operation beyond these absolute maximum conditions may degrade device performance, lead to device failure,
shorter lifetime, and will invalidate the device warranty.
Typical Specification（1）
| Parameter | Test Condition | MIN. | TYP. | MAX. | Unit | |
| Frequency Range（1） | TSC | 0.01 ~ 3 | GHz | |||
| TCC | 0.01 ~ 6 | |||||
| Optical Wavelength | CWDM | optional | nm | |||
| Gain (2) | TSC | Tx with LNA Rx with LNA | 6 | 14 | -- | dB |
| Tx with LNA Rx without LNA | -11 | -3 | -- | |||
| Tx without LNA Rx with LNA | -11 | -3 | -- | |||
| Tx without LNA Rx without LNA | -28 | -24 | -- | |||
| TCC | Tx without LNA Rx with LNA | -11 | -3 | -- | ||
| Tx without LNA Rx without LNA | -30 | -26 | -- | |||
| Ripple of Passband | TSC | 100M~3GHz, 1270nm~1370nm | -- | ±1.5 | ±2.2 | dB |
| 100M~3GHz, 1530nm and 1550nm | -- | ±2.5 | ±3.0 | |||
| TCC | 100M~6GHz, 1270nm~1370nm | -- | ±1.5 | ±2.2 | ||
| 100M~6GHz, 1530nm and 1550nm | -- | ±2.5 | ±3.0 | |||
| Output Optical Power | +25℃ | -- | 9 | -- | dBm | |
| RF Return loss (50 Ω) | TSC | 10MHz ~ 3GHz, RF Input | -- | -10 | -5 | dB |
| TCC | 10MHz ~ 6GHz, RF Input | -- | -10 | -5 | ||
| Input P-1dB（2） | TSC | with LNA, 1.5GHz | -- | 0 | -- | dBm |
| without LNA, 1.5GHz | -- | 17 | -- | |||
| TCC | without LNA, 3GHz | 17 | ||||
| SFDR(2) | TSC | 1.5GHz | 102 | 115 | -- | dB·Hz2/3 |
| TCC | 3GHz | 102 | 113 | -- | ||
| Input IP3(2) | TSC | with LNA, 1.5GHz | 4 | 9 | -- | dBm |
| without LNA, 1.5GHz | 25 | 33 | -- | |||
| TCC | without LNA, 3GHz | 21 | 33 | -- | ||
| Noise Figure (2) | TSC | with LNA, 1.5GHz 1270nm ~1370nm | -- | 18 | 25 | dB |
| with LNA, 1.5GHz 1270nm ~1370nm | -- | 20 | 26 | |||
| without LNA, 1.5GHz 1270nm~1370nm | -- | 32 | 40 | |||
| without LNA, 1.5GHz 1530nm and 1550nm | -- | 35 | 42 | |||
| TCC | without LNA, 3GHz 1270nm ~1370nm | -- | 32 | 42 | ||
| without LNA, 3GHz 1530nm and 1550nm | -- | 38 | 45 | |||
| Operating Current | with LNA, TSC | -- | 145 | 200 | mA | |
| without LNA, TSC/TCC | -- | 55 | 100 | |||
| Operating Voltage | +5V pin | 4.8 | 5 | 5.2 | VDC | |
| Bias-T Voltage | Thoughthe RF SMA connector | 4.8 | 5 | 5.2 | VDC | |
| Bias-T Current Supply | Thoughthe RF SMA connector | - | -- | 200 | mA | |
Note: (1) The lower start frequency such as 9kHz can be customized (without LNA only); (2) Test with MR03 series S-Mini optical receiver (see the picture below) and the fiber is 1-meter SMF-28 fiber.

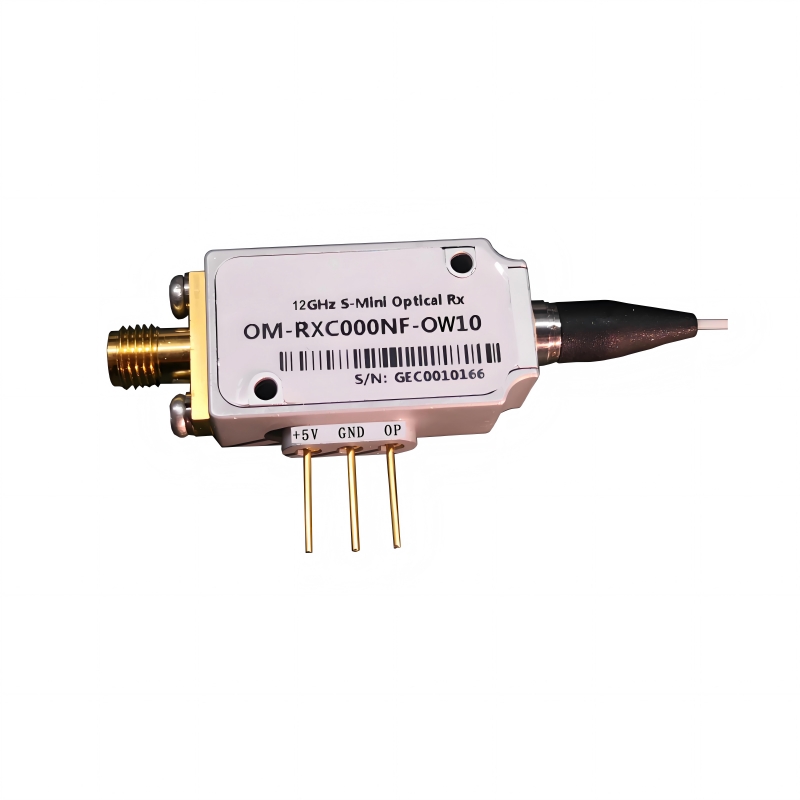

MR03 Series S-Mini Optical Receiver (Rx)
Connector
| Type | Connector |
|---|---|
| RF | SMA (50Ω), Female |
| Optical | FC/APC (1) |
| Optical Fiber Type | SMF-28(Standard) |
| Power | EMI Low Pass Filter, Feed Through Capacitor |
Note (1): Other type optical connector available upon request.
PIN Function
| PIN | Name | Direction | Note |
|---|---|---|---|
| 1 | +5V | Ⅰ | +5V DC Power |
| 2 | GND | Ⅰ | RF and DC Ground |
| 3 | OP | O | Optical Power Monitor，Power Level is +2.2V±0.4V Indicate Transmit OpticalPower Normal，Otherwise Indicate Transmit Optical Power Abnormal. |

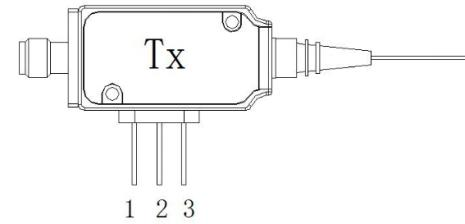

Optical Transmitter top view
Laser Safety and ESD Protection
1,The laser safety level of MT04 series optical Tx modules is ClassⅢB (5mW~500mW). When using the Tx laser, the user has to avoid to exposure to the beam.
2, The MT04 series optical Tx modules have electrostatics sensitivity devices, so the user has to do a good job of ESD protection when using the modules.
Heat Dissipation Requirements：
In order to ensure proper performance, heat sinking and heat removal must be provided by the user to limit maximum temperature of the transmitter and receiver module. The bottom of the module is the preferred heat dissipation surface.

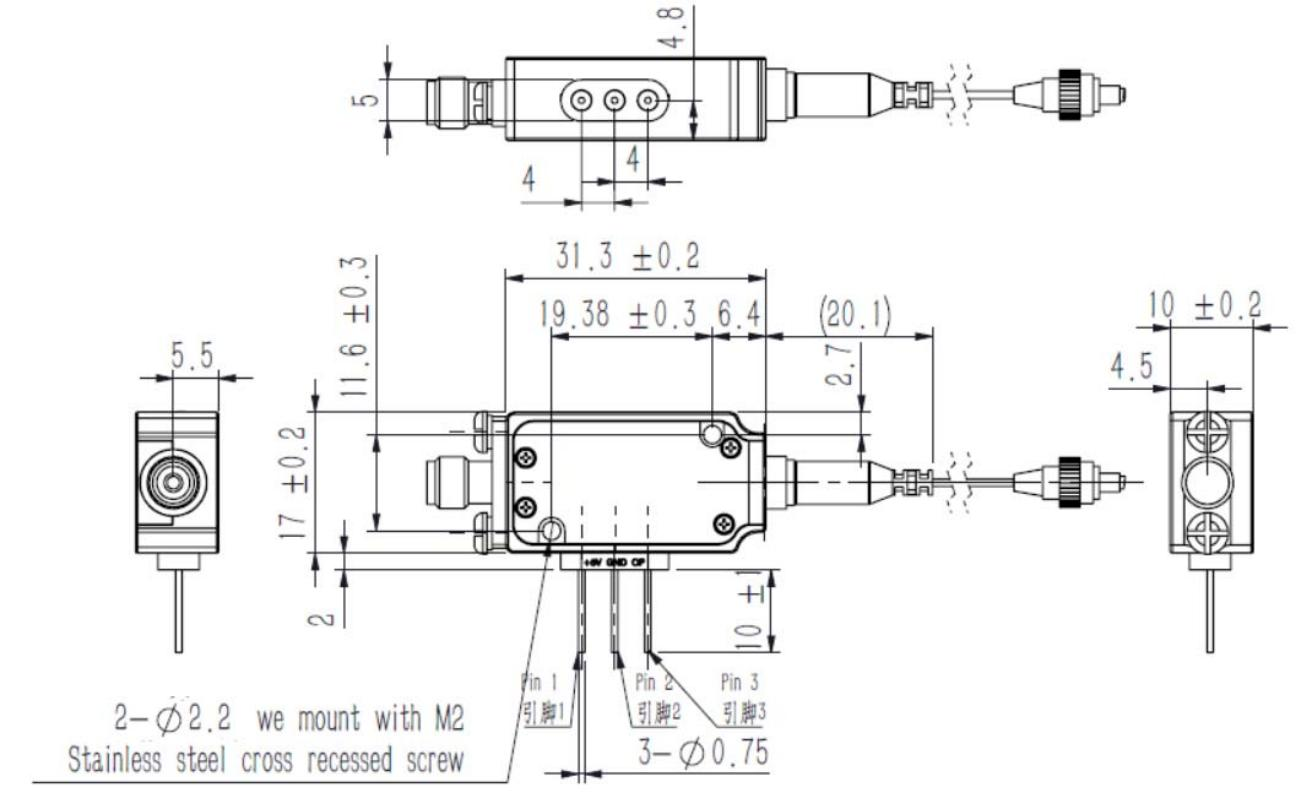

Mechanical (unit: mm)
Optical Transmitter
Note: When using the module, the bottom of the module needs to be fully cooled.
Ordering Information
Optical Transmitter
| OM | - | TxC | xxx | N | x | - | O | S | x | x |
|---|---|---|---|---|---|---|---|---|---|---|
| OM： | Frequency Range(1)： | Wavelength（2）： | Optical Connector and | Operating Temperature（4） | Bias-T： | LNA（5）： | ||||
| Optical | TSC： 10M~3GHz | 127： 1270nm | Fiber Type（3）： | S: -20 to 70℃ | 1：without | 0：without | ||||
| Module | TCC： 10M~6GHz | 129： 1290nm…137： 1370nm 153： 1530nm 155： 1550nm | F： FC/APC SML: LC/APC SM | T：with | 1：with |
Note:(1) The lower start frequency such as 9kHz is available upon request (without LNA only) ;(2) Other wavelengths is available upon request; (3) Other types of optical fiber connector type is available upon request; (4) Other temperature range is available upon request, (5) LNA only supports TSC frequency band for the time being.
