18GHz High Dynamic DWDM Analog Optical Transceiver
Product Description：This highly dynamic DWDM analog optical transceiver contains both Tx and Rx components. It operates from 10 MHz to 18 GHz with APC/ATC for applications such as antenna remote control, satellite communications, delay lines, distributed antenna systems, and broadband wireless communications.
Tags：analog optical Transceiver Butterfly TEC 18GHz DWDM
Applications： RF over Fiber (ROF)
Model：OM-TUCxxCNF-OWKD/OM-RUC000NF-OWD0
Features
- Transmitter using butterfly optical device with TEC
- Support ITU C-Band ，wide range of DWDM wavelengths can be selected
- Wide operating frequency from 10MHz to 18GHz
- Flat frequency response： ≤±1.5dB typical
- High RF input P-1dB： ≥27dBm@10GHz
- Good noise figure： ≤48dB@18GHz
- High dynamic range ：SFDR up to 123dB·Hz2/3
- Automatic optical power control（APC）and auto temperature control（ATC）functions
- Excellent EMI/EMC design， ROHs compliant and CE certification
Applications
- Antenna remoting
- Satellite communication
- Delay line
- Distributed antenna system
- Wideband wireless communication
- OFDM fiber transmission
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Min. | Max. | Unit |
|---|---|---|---|---|---|
| Operating Temperature | Topr | Tx & Rx | -40 | 70 | °C |
| Storage Temperature | Tstg | Tx & Rx | -40 | 85 | °C |
| DC Operating Voltage | Vd | -5V pin@Tx | -5.5 | -4.7 | V |
| +5Vpin@Tx | 4.7 | 5.5 | |||
| +10Vpin@Tx | 9.7 | 10.5 | |||
| RF Input Power | Prf | Tx, ≤10GHz | -- | 28 | dBm |
| Saturation Input Optical Power | Pop | Rx | -- | 13 | dBm |
| Relative Humidity | Hr | 10 | 95 | % | |
| Atmospheric Pressure | Pr | 86 | 106 | kPa | |
| ESD | Human body model | -- | Class1A |
Note：Operation beyond these absolute maximum conditions may degrade device performance, lead to device failure,
shorter lifetime, and will invalidate the device warranty.
Typical Specification
| Parameter | Test Condition | MIN. | TYP. | MAX. | Unit | |
| Frequency Range | Tx+Rx link | 0.01 ~ 18 | GHz | |||
| Optical Wavelength | Transmitter, ITU-C band DWDM | optional | nm | |||
| Receiver | 1100~1620 | |||||
| Gain (1) | Tx+Rx link gain,10MHz~18GHz | -30 | -26 | -- | dB | |
| Ripple of Passband | 100MHz ~ 18GHz | -- | ±1.5 | ±2 | dB | |
| Output Optical Power | +25℃, Tx | 10 | 12 | -- | dBm | |
| RF Return loss (50 Ω) | 100MHz ~ 18GHz, RF Input & output | -- | -10 | -5 | dB | |
| Input P-1dB | 1GHz | 26 | 27 | -- | dBm | |
| 10GHz | 27 | 28 | -- | |||
| 18GHz | 23 | 24 | -- | |||
| Input IP3(1) | 1GHz | 34 | 37 | -- | dBm | |
| 10GHz | 30 | 34 | -- | |||
| 18GHz | 25 | 28 | -- | |||
| Noise Figure (1) | 1GHz | -- | 38 | 40 | dB | |
| 10GHz | -- | 42 | 45 | |||
| 18GHz | -- | 46 | 48 | |||
| SFDR | 1GHz | 115 | 123 | -- | dB·Hz2/3 | |
| 10GHz | 105 | 110 | -- | |||
| 18GHz | 100 | 104 | -- | |||
| Operating Current | +5V@Tx | -- | 45 | 800 | mA | |
| -5V@Tx | -- | 165 | 300 | |||
| +10V@Rx | 10 | 20 | ||||
| Operating Voltage | Tx， +5V pin | 4.8 | 5 | 5.2 | VDC | |
| Tx ，-5V pin | -5.2 | -5 | -4.8 | |||
| Rx， +10V pin | 9.8 | 10 | 10.3 | |||
Note（1）: Test with 1.0-meter SMF-28 fiber.
Connector
| Type | Connector | |
| RF | Tx | K type, 50Ω, Female |
| Rx | SMA, 50Ω, Female | |
| Optical | FC/APC (1) ，Tx & Rx | |
| Optical Fiber Type | SMF-28(Standard) (1) ，Tx & Rx | |
| Power | EMI Low Pass Filter, Feed Through Capacitor, Soldering Temperature Should not Exceed 300℃ and 3s ， Tx & Rx | |
Note（1）: Other optical connector type and fiber type can be customized.
PIN Function
Optical transmitter

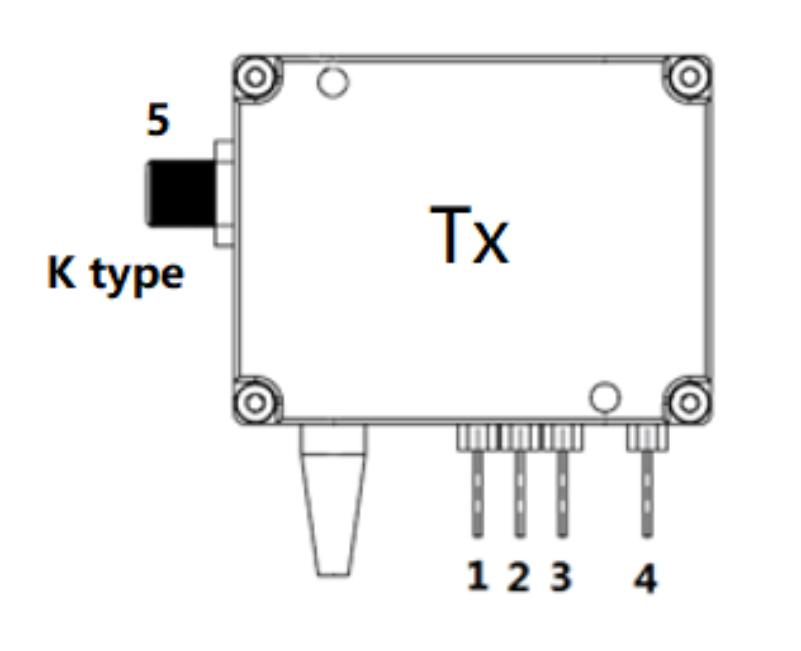

Optical Transmitter Top View
| PIN | Name | Direction | Note |
|---|---|---|---|
| 1 | +5V | Ⅰ | +5V DC Power |
| 2 | -5V | Ⅰ | -5V DC Power |
| 3 | GND | Ⅰ | GND |
| 4 | OP | O | Optical Power Monitor ，TTL Level ，Low Level（＜0.4V）is Optical PowerLow ，High Level（+5V）is Optical Power Normal. |
| 5 | RF | I | RF Input, K Type Female, 50Ω |
Optical Receiver

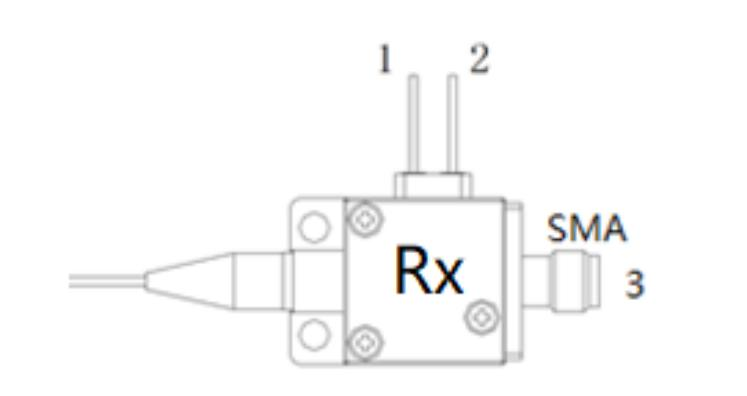

Optical Receiver Top View
| PIN | Name | Direction | Note |
|---|---|---|---|
| 1 | GND | Ⅰ | GND |
| 2 | +10V | Ⅰ | +10V DC Power |
| 3 | RF | O | RF Out, SMA Female,50Ω |
Laser Safety and ESD Protection
1,The laser safety level of the optical Tx modules is ClassⅢB (5mW~500mW). When using the Tx laser,
the user has to avoid to exposure to the beam.
2, The optical Tx and Rx modules have electrostatics sensitivity devices, so the user has to do a good job of ESD protection when using the modules.
Heat Dissipation Requirements
In order to ensure proper performance, heat sinking and heat removal must be provided by the user to limit maximum temperature of the transmitter module.

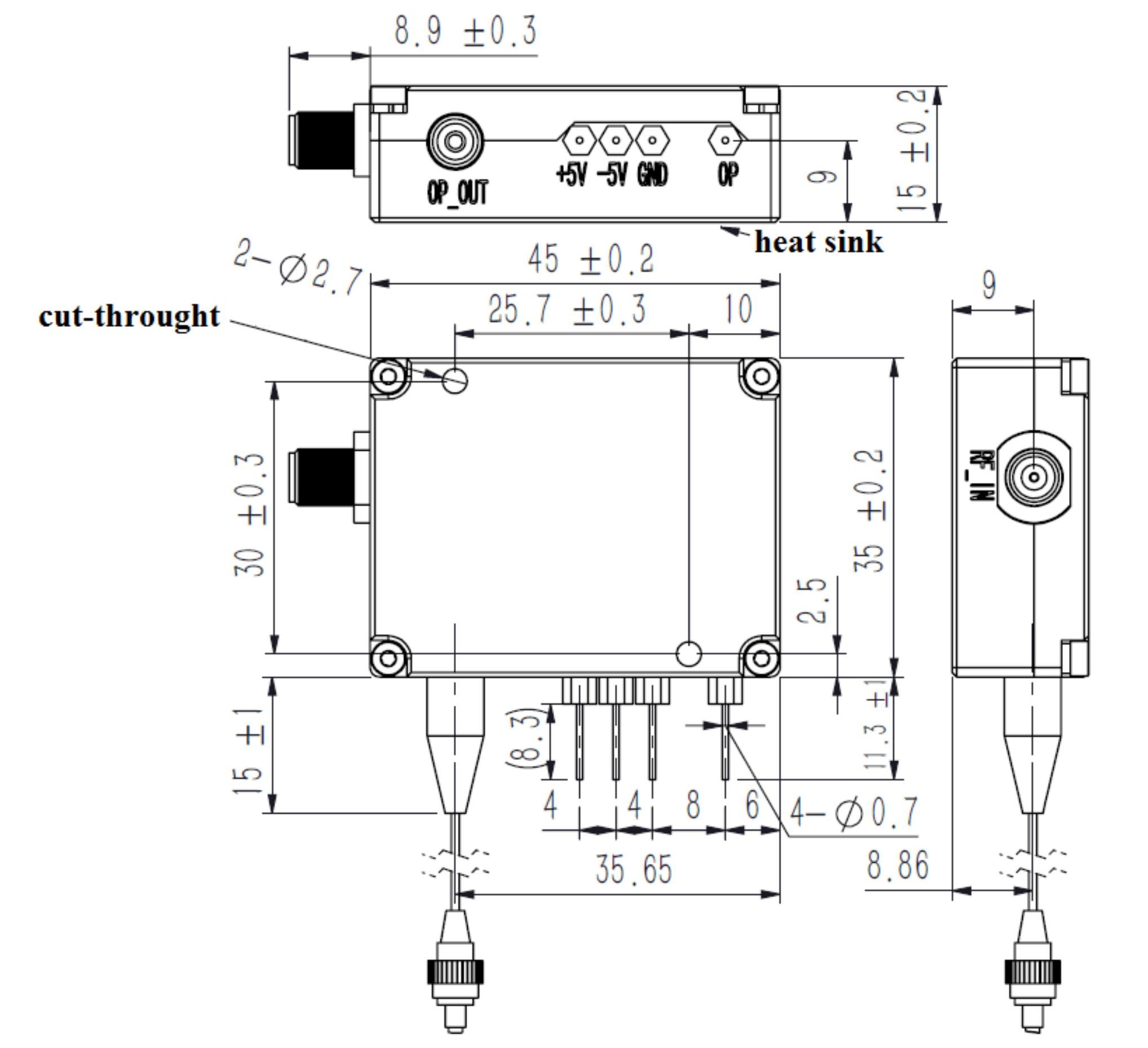

Mechanical (unit: mm)
Note: When using the module, the bottom of the module needs to be fully cooled.
Note ：Do not squeeze the M2.5 screws of the module to the optical component, otherwise it may cause the optical component to break.
Optical Receiver
Ordering Information
| OM | - | T | U | C | xxC | N | F | - | O | W | KD |
|---|---|---|---|---|---|---|---|---|---|---|---|
 | T：Tx | Frequency Range U ： 10MHz ~18GHz | Laser Wavelength （2）xxC：xx is the ITU C bandwavelength code number, see the table below | Optical Connector and Fiber Type (1)F： FC/APC SM | Operating Temperature RangeW： -40 to 70℃ | ||||||
Note: （1）Other optical wavelengths can be customized.
(2) ITU C-band Wavelength Code Number Table：
| xx | Frequency(THz) | Center Wavelength (nm) | xx | Frequency(THz) | Center Wavelength (nm) |
|---|---|---|---|---|---|
| 17 | 191.7 | 1563.86 | 40 | 194.0 | 1545.32 |
| 18 | 191.8 | 1563.05 | 41 | 194.1 | 1544.53 |
| 19 | 191.9 | 1562.23 | 42 | 194.2 | 1543.73 |
| 20 | 192.0 | 1561.42 | 43 | 194.3 | 1542.94 |
| 21 | 192.1 | 1560.61 | 44 | 194.4 | 1542.14 |
| 22 | 192.2 | 1559.79 | 45 | 194.5 | 1541.35 |
| 23 | 192.3 | 1558.98 | 46 | 194.6 | 1540.56 |
| 24 | 192.4 | 1558.17 | 47 | 194.7 | 1539.77 |
| 25 | 192.5 | 1557.36 | 48 | 194.8 | 1538.98 |
| 26 | 192.6 | 1556.55 | 49 | 194.9 | 1538.19 |
| 27 | 192.7 | 1555.75 | 50 | 195.0 | 1537.40 |
| 28 | 192.8 | 1554.94 | 51 | 195.1 | 1536.61 |
| 29 | 192.9 | 1554.13 | 52 | 195.2 | 1535.82 |
| 30 | 193.0 | 1553.33 | 53 | 195.3 | 1535.04 |
| 31 | 193.1 | 1552.52 | 54 | 195.4 | 1534.25 |
| 32 | 193.2 | 1551.72 | 55 | 195.5 | 1533.47 |
| 33 | 193.3 | 1550.92 | 56 | 195.6 | 1532.68 |
| 34 | 193.4 | 1550.12 | 57 | 195.7 | 1531.90 |
| 35 | 193.5 | 1549.32 | 58 | 195.8 | 1531.12 |
| 36 | 193.6 | 1548.51 | 59 | 195.9 | 1530.33 |
| 37 | 193.7 | 1547.72 | 60 | 196.0 | 1529.55 |
| 38 | 193.8 | 1546.92 | 61 | 196.1 | 1528.77 |
| 39 | 193.9 | 1546.12 |
Optical Receiver
| OM |  - | R | U | C | 000 | N | F | - | O | W | D0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R：Rx | Frequency Range：U ： 10MHz（1） ~18GHz | Wavelength000: 1100nm~1620nm | Optical Connector（1） F： FC/APC SM | Operating Temperature RangeW: -40 to 70℃ |
Note:（1） Other types of optical fiber connector type can be customized.
