Driver Installation Guide For Linux
Tags：
Driver Installation Guide

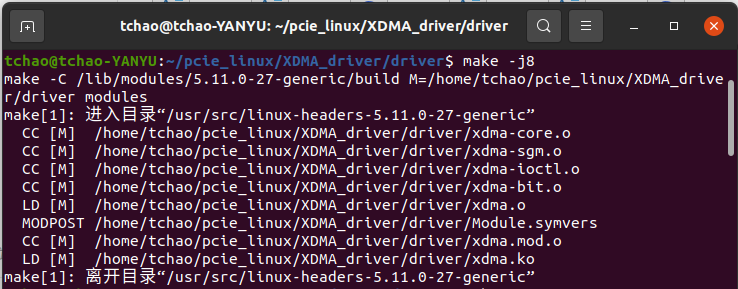

1.Compile Driver
Open the terminal under the Driver folder, directly input make to compile, you can see the xdma.ko file generated after successful compilation.

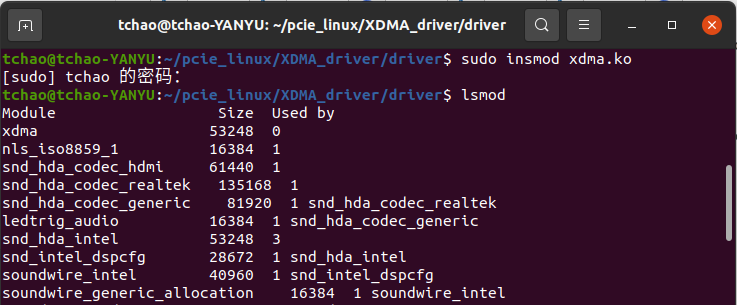

2.Driver Installation

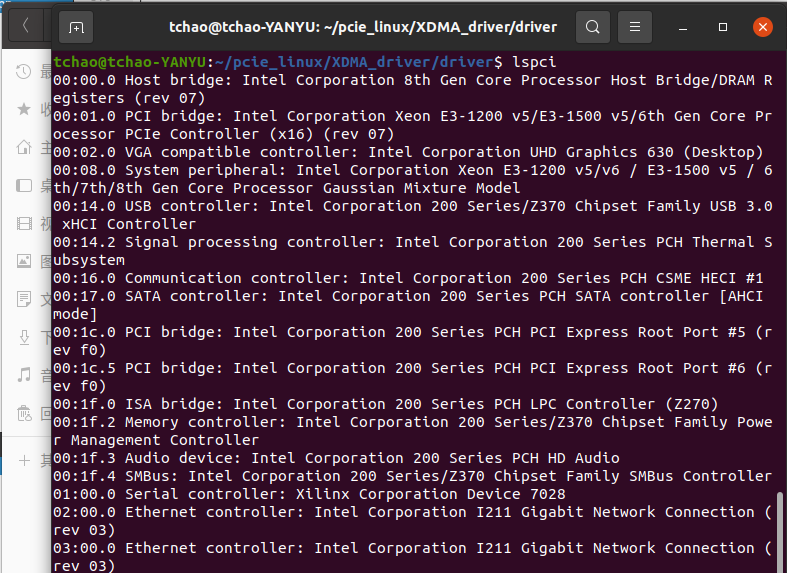

Input sudo insmod xdma.ko in the terminal to complete the driver installation, after the installation is completed, you can view the driver through lsmod, in addition, you can view the capture card device through lspci.
