Driver Installation Guide

1. First install the driver support package NI VISA, NIVISA1750full.exe.

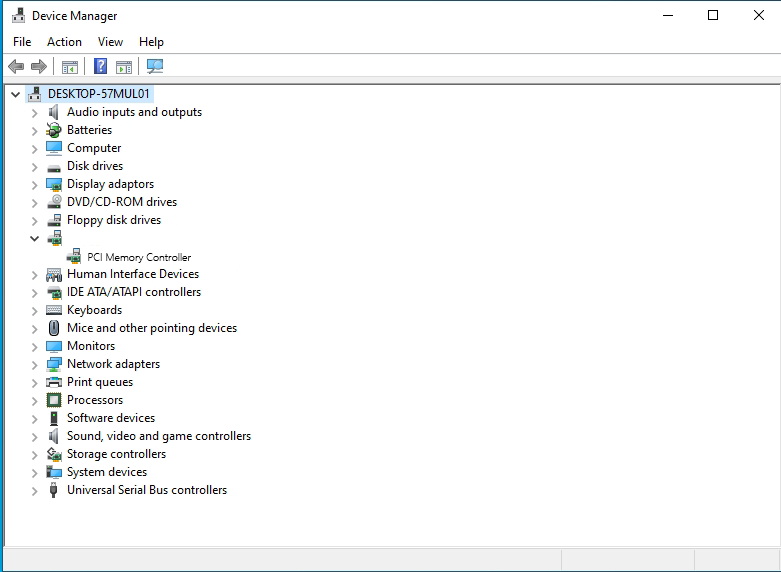

2. Then find the device in Device Manager, as shown below, PCI Memory Controller, and then select the PCIe-7820 driver folder for driver installation;

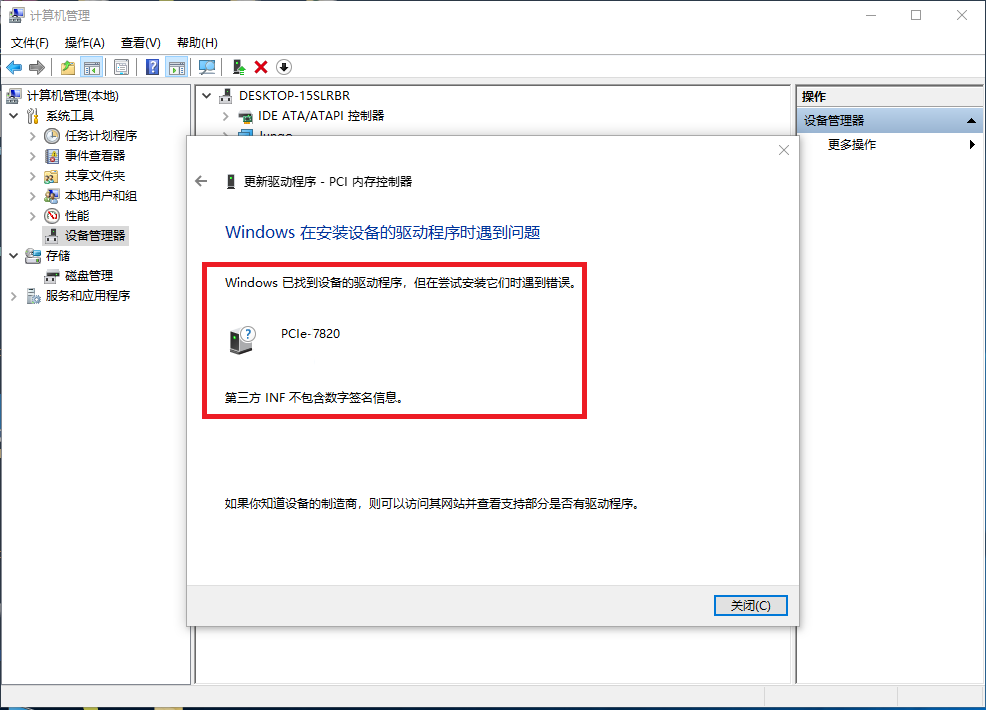

3.If you use WIN10 system, you will encounter the driver signature does not pass (WIN7 system does not appear the problem), the following chart.)

4.How to disable driver forced signing in Win10

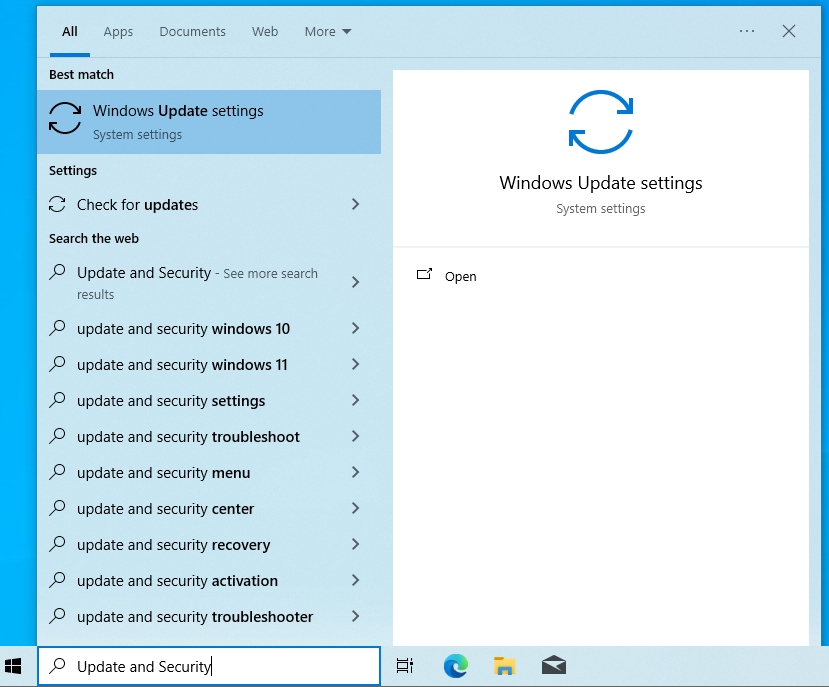

   1. Type 'Update and Security' in the system search bar and open it

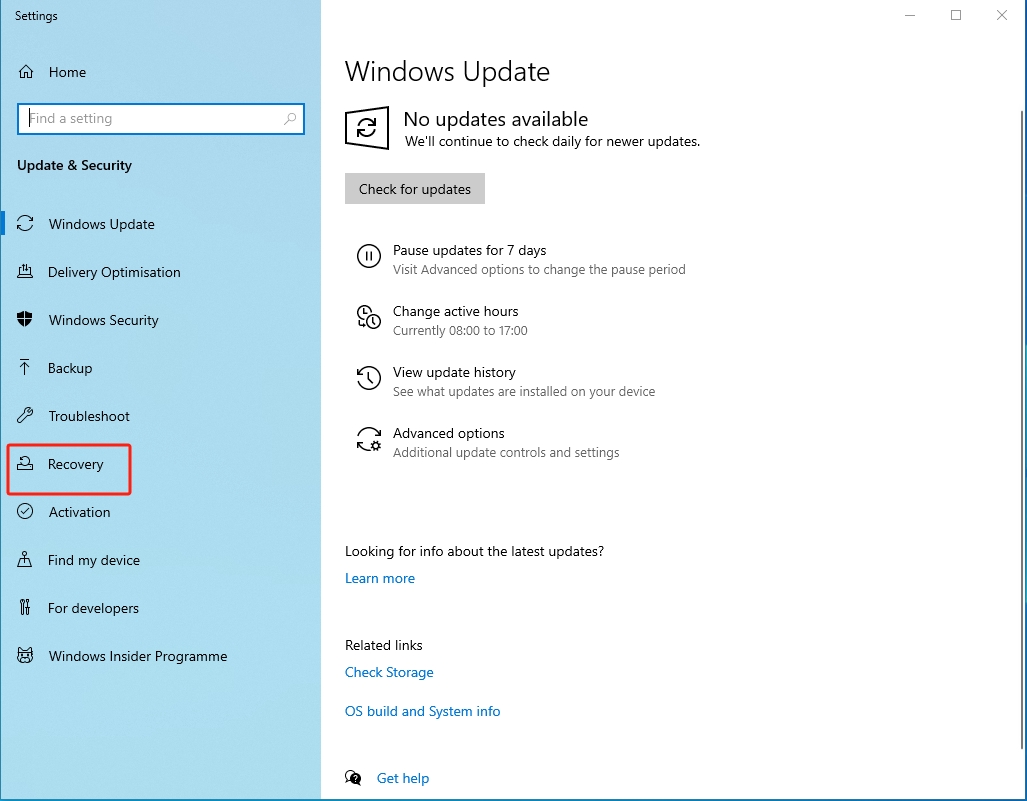

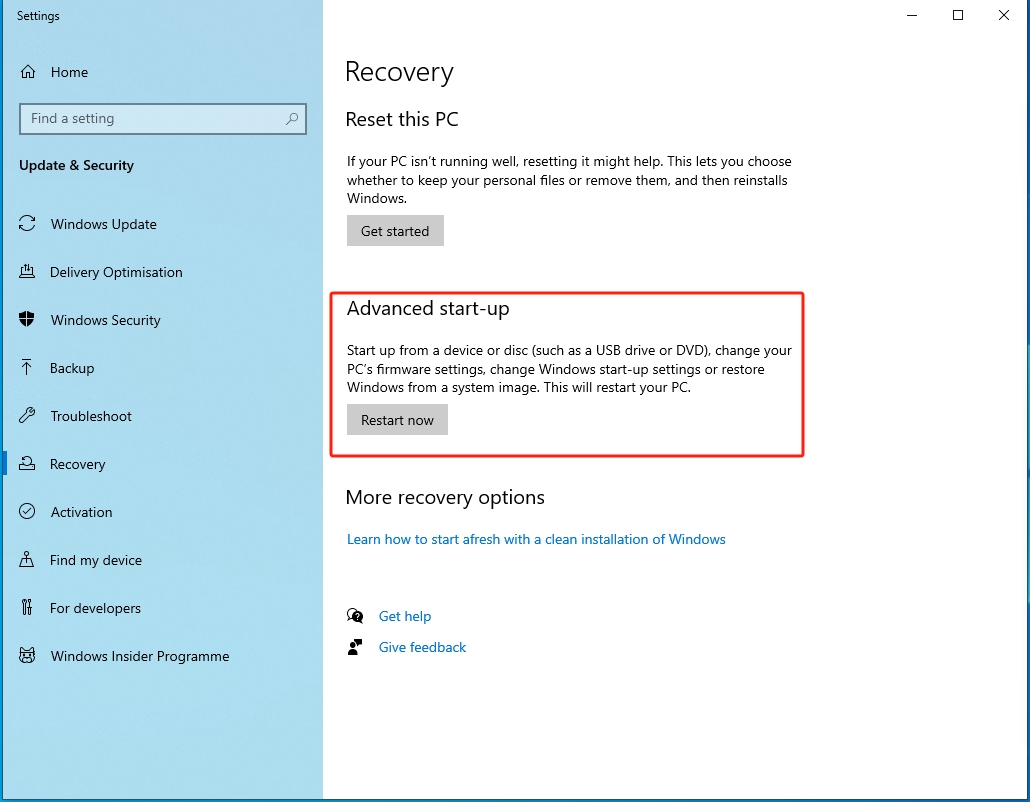

   2. Fnd Recovery, click Restart Now under Advanced Startup and restart your computer.

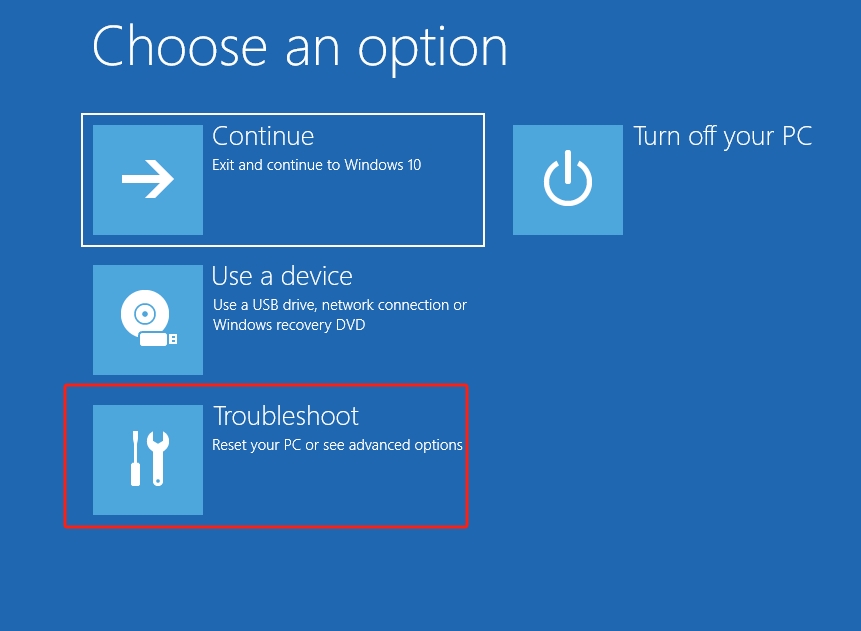

  3.Reboot and select "Troubleshoot"

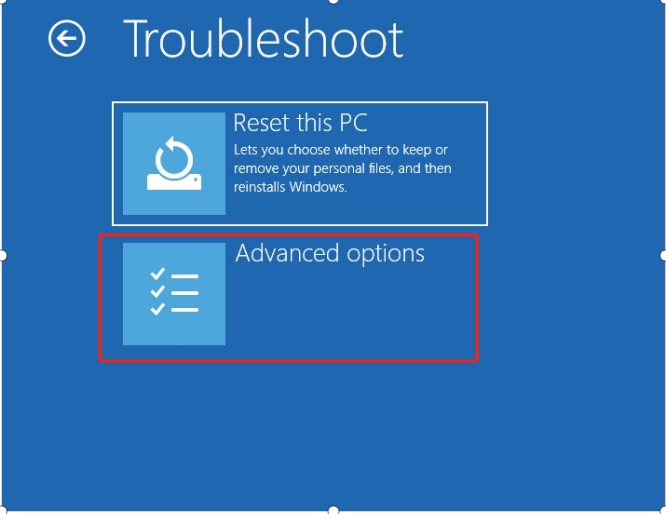

  4.Select "Advanced Options

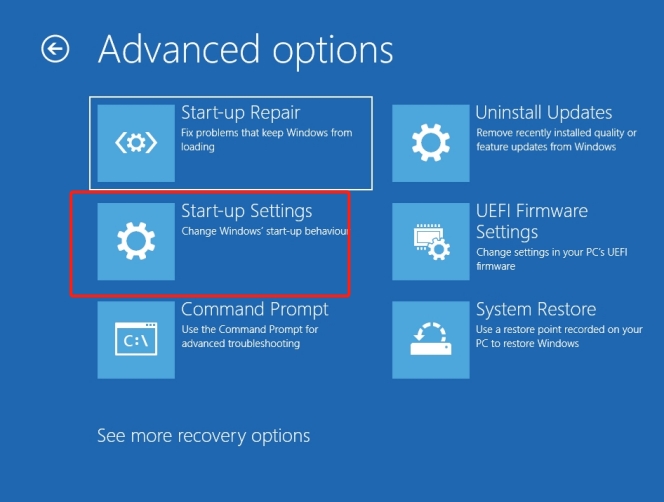

  5.Select "Start-up Settings"

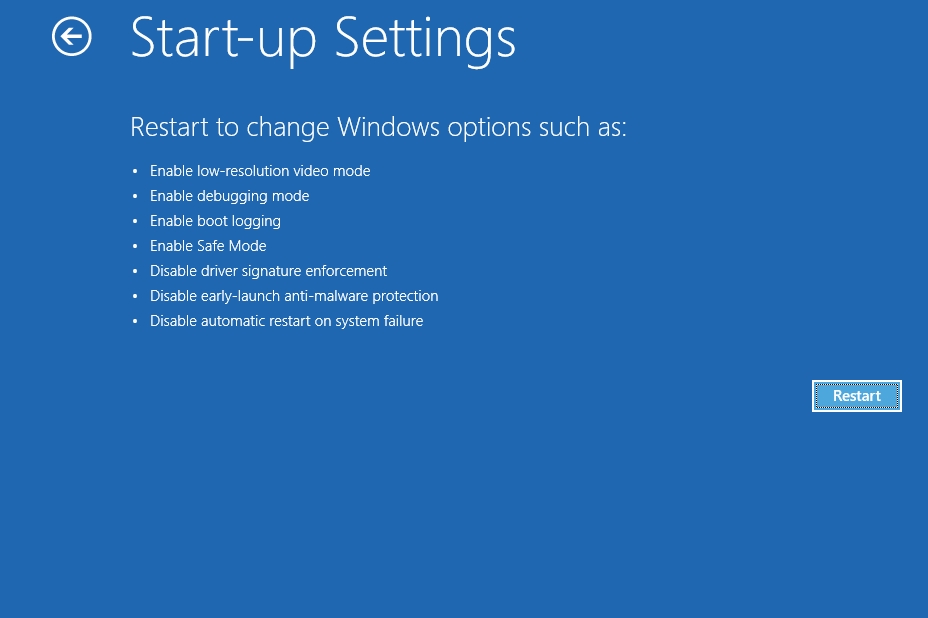

  6.Click"Restart"

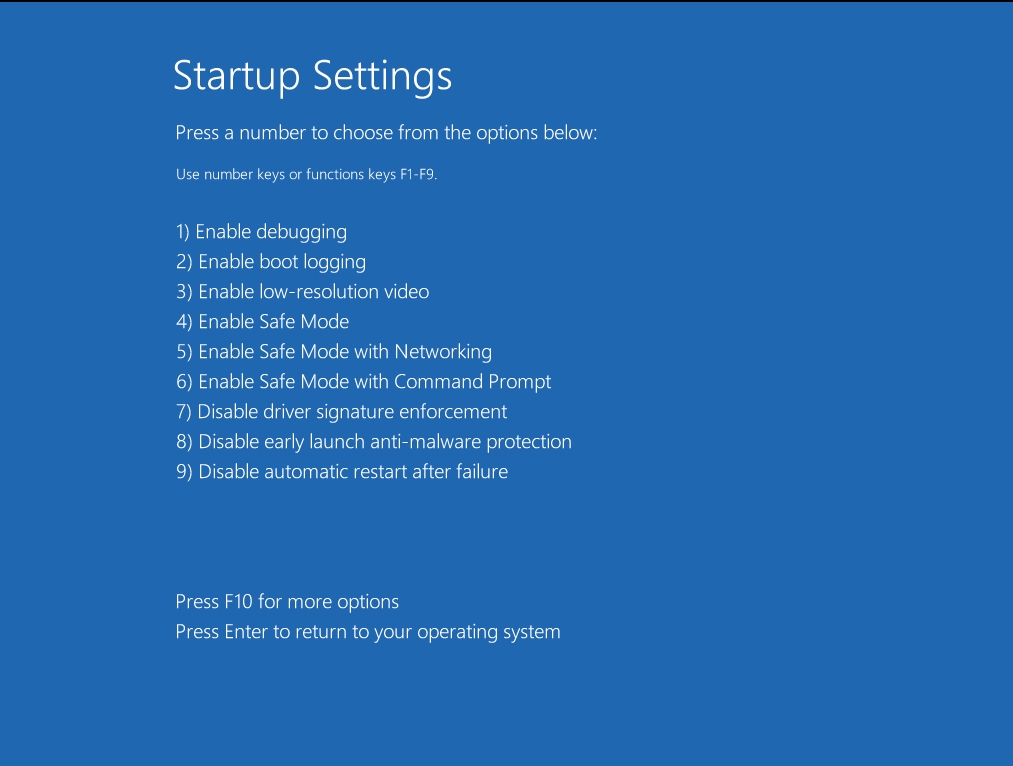

  7.Enter "7" at the prompt to disable driver forced signing.

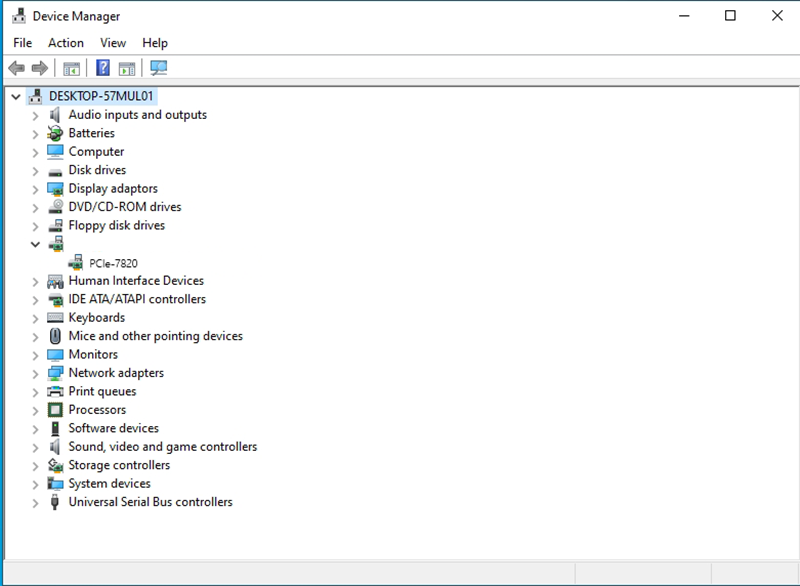

5.Installation is successful as shown below
