MT01 Series Butterfly Analog Optical Transmitter with TEC
Model Number：OM-TxCxxxNF-OWK0
Summarize：OM-TxCxxxNF-OWK0 use butterfly optical device with TEC,Wide operating frequency from 10MHz to 18GHz.Commonly used in distributed antenna systems, broadband wireless communications, ofdm fiber optic transmission, etc.
Tags：ROF 18GHz Butterfly Optical Transmitter TEC C Band etc
Applications：
Features
- Low noise, use butterfly optical device with TEC
- Support ITU C Band
- Wide operating frequency from 10MHz to 18GHz
- APC&ATC functions
- Flat frequency response
- High dynamic range
- Excellent EMI/EMC design
Applications
- Antenna remoting
- Secure communication
- Fiber delay line
- Distributed antenna system
- Wideband wireless communication
- OFDM fiber transmission
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Min. | Max. | Unit |
|---|---|---|---|---|---|
| Operating Temperature | Topr | Case temperature | -40 | +70 | °C |
| Storage Temperature | Tstg | -40 | +85 | °C | |
| DC Operating Voltage | Vd | -5V | -5.5 | -4.7 | V |
| +5V | +4.7 | +5.5 | |||
| RF Input Power | Prf | Continuous | -- | 20 | dBm |
| Relative Humidity | Hr | 10 | 95 | % | |
| Atmospheric Pressure | Pr | 86 | 106 | kPa | |
| ESD | Human body model | -- | Class 1A |
Typical Specification (CWDM)
| Parameter | Test Condition | Min. | Typ. | Max. | Unit | ||
| Frequency Range | TSC | 0.01 ~ 3 | GHz | ||||
| TCC | 0.01 ~ 6 | ||||||
| TXC | 0.01 ~ 12 | ||||||
| TYC | 0.01 ~ 16 | ||||||
| TUC | 0.01 ~ 18 | ||||||
| Optical Wavelength | λ0 is standard CWDM wavelength | Optional | nm | ||||
| Optical Wavelength Range | Operating Temperature Range | λ0-3 | λ0 | λ0 +3 | nm | ||
| Output Optical Power | +25℃ | -- | 9 | -- | dBm | ||
| Gain (1) | Operating Temperature Range | -30 | -26 | -- | dB | ||
| Gain Flatness (1) | TSC | 100MHz ~ 3GHz | -- | ±1.2 | ±2 | dB | |
| TCC | 100MHz ~ 6GHz | -- | ±1.5 | ±2.5 | |||
| TXC | 100MHz ~ 12GHz | -- | ±1.8 | ±2.5 | |||
| TYC | 100MHz ~ 16GHz | -- | ±1.5 | ±2.5 | |||
| TUC | 100MHz ~ 18GHz， 1270nm ~ 1330nm，1550nm | ±1.5 | ±2.5 | ||||
| -- | |||||||
| 100MHz ~ 18GHz， 1350nm/1370nm | ±2 | ±3 | |||||
| -- | |||||||
| RF Return Loss | TSC | 100MHz ~ 3GHz | -- | -15 | -10 | dB | |
| TCC | 100MHz ~ 6GHz | -- | -12 | -10 | |||
| TXC | 100MHz ~ 12GHz | -- | -10 | -8 | |||
| TYC | 100MHz ~ 16GHz | -- | -12 | -8 | |||
| 100MHz ~ 18GHz， | -12 | -8 | |||||
| 1270nm ~ 1330nm，1550nm | -- | ||||||
| TUC | 100MHz ~ 18GHz， 1350nm/1370nm | -10 | -5 | ||||
| -- | |||||||
| Iutput P-1dB | 1GHz | -- | 18 | -- | dBm | ||
| SFDR (1) | TSC | 1GHz | 1270nm ~ 1370nm | 113 | 119 | -- | dB·Hz2/3 |
| 1530nm/1550nm | 113 | 118 | -- | ||||
| 2GHz | 1270nm ~ 1370nm | 111 | 116 | -- | |||
| 1530nm/1550nm | 110 | 115 | -- | ||||
| 3GHz | 1270nm ~ 1370nm | 108 | 113 | -- | |||
| 1530nm/1550nm | 106 | 111 | -- | ||||
| TCC | 1GHz | 1270nm ~ 1370nm | 110 | 117 | -- | ||
| 1530nm/1550nm | 109 | 117 | -- | ||||
| 3GHz | 1270nm ~ 1370nm | 107 | 114 | -- | |||
| 1530nm/1550nm | 105 | 112 | -- | ||||
| 6GHz | 1270nm ~ 1370nm | 103 | 109 | -- | |||
| 1530nm/1550nm | 101 | 107 | -- | ||||
| TXC | 1GHz | 110 | 117 | -- | |||
| 6GHz | 104 | 111 | -- | ||||
| 12GHz | 99 | 106 | -- | ||||
| TYC | 1GHz | 110 | 115 | -- | |||
| 10GHz | 105 | 112 | -- | ||||
| 16GHz | 101 | 105 | -- | ||||
| TUC | 1GHz | 109 | 115 | -- | |||
| 10GHz | 104 | 109 | -- | ||||
| 18GHz | 100 | 105 | -- | ||||
| IIP3 (1) | TSC | 1GHz | 32 | 36 | -- | dBm | |
| 2GHz | 30 | 33 | -- | ||||
| 3GHz | 27 | 30 | -- | ||||
| TCC | 1GHz | 27 | 34 | -- | |||
| 3GHz | 25 | 31 | -- | ||||
| 6GHz | 22 | 26 | -- | ||||
| TXC | 1GHz | 27 | 33 | -- | |||
| 6GHz | 24 | 30 | -- | ||||
| 12GHz | 21 | 26 | -- | ||||
| TYC | 1GHz | 28 | 32 | -- | |||
| 10GHz | 25 | 30 | -- | ||||
| 16GHz | 22 | 26 | -- | ||||
| TUC | 1GHz | 28 | 32 | -- | |||
| 10GHz | 25 | 30 | -- | ||||
| 18GHz | 22 | 27 | -- | ||||
| Noise Figure (1) | TSC | 1GHz | 1270nm ~ 1370nm | -- | 32 | 36 | dB |
| 1530nm/1550nm | -- | 33 | 37 | ||||
| 2GHz | 1270nm ~ 1370nm | -- | 33 | 38 | |||
| 1530nm/1550nm | -- | 35 | 39 | ||||
| 3GHz | 1270nm ~ 1370nm | -- | 34 | 39 | |||
| 1530nm/1550nm | -- | 37 | 42 | ||||
| TCC | 1GHz | 1270nm ~ 1370nm | -- | 32 | 36 | ||
| 1530nm/1550nm | -- | 33 | 37 | ||||
| 3GHz | 1270nm ~ 1370nm | -- | 34 | 39 | |||
| 1530nm/1550nm | -- | 37 | 42 | ||||
| 6GHz | 1270nm ~ 1370nm | -- | 37 | 42 | |||
| 1530nm/1550nm | -- | 40 | 45 | ||||
| TXC | 1GHz | -- | 32 | 36 | |||
| 6GHz | -- | 37 | 42 | ||||
| 12GHz | -- | 41 | 47 | ||||
| TYC | 1GHz | -- | 34 | 37 | |||
| 10GHz | -- | 36 | 41 | ||||
| 16GHz | -- | 42 | 45 | ||||
| TUC | 1GHz | -- | 34 | 38 | |||
| 10GHz | -- | 40 | 43 | ||||
| 18GHz | -- | 43 | 46 | ||||
| Operating Current | +5V | -- | 65 | 800 | mA | ||
| -5V | -- | 70 | 100 | ||||
| Operating Voltage | +5V | 4.8 | 5 | 5.2 | VDC | ||
| -5V | -5.2 | -5 | -4.8 | ||||
| Weight | -- | 60 | 61 | g | |||
Note: （ 1 ）Test with Optical Receiver and 1.0-meter SMF-28 fiber.
Typical Specification (DWDM)
| Parameter | Test Condition | Min. | Typ. | Max. | Unit | |
| Frequency Range | TSC | 0.01 ~ 3 | GHz | |||
| TCC | 0.01 ~ 6 | |||||
| TXC | 0.01 ~ 12 | |||||
| Optical Wavelength | λ0 is ITU C wavelength | Optional | nm | |||
| Optical Wavelength Range | Operating Temperature Range | λ0-0.1 | λ0 | λ0 +0.1 | nm | |
| Output Optical Power | +25℃ | -- | 9 | -- | dBm | |
| Gain (2) | Operating Temperature Range | -30 | -26 | -- | dB | |
| Gain Flatness (2) | TSC | 100MHz ~ 3GHz | -- | ±1.3 | ±2 | dB |
| TCC | 100MHz ~ 6GHz | -- | ±1.5 | ±2.2 | ||
| TXC | 100MHz ~ 12GHz | -- | ±2 | ±3 | ||
| RF Return Loss | TSC | 100MHz ~ 3GHz | -- | -13 | -10 | dB |
| TCC | 100MHz ~ 6GHz | -- | -12 | -10 | ||
| TXC | 100MHz ~ 12GHz | -- | -10 | -8 | ||
| Iutput P-1dB | 1GHz | -- | 18 | -- | dBm | |
| SFDR (2) | TSC | 1GHz | 112 | 118 | -- | dB·Hz2/3 |
| 2GHz | 110 | 115 | -- | |||
| 3GHz | 109 | 113 | -- | |||
| TCC | 1GHz | 113 | 118 | -- | ||
| 3GHz | 109 | 113 | -- | |||
| 6GHz | 101 | 106 | -- | |||
| TXC | 1GHz | 109 | 115 | -- | ||
| 6GHz | 102 | 107 | -- | |||
| 12GHz | 95 | 99 | -- | |||
| Parameter | Test Condition | Min. | Typ. | Max. | Unit | |
| IIP3 (2) | TSC | 1GHz | 31 | 36 | -- | dBm |
| 2GHz | 30 | 35 | -- | |||
| 3GHz | 29 | 33 | -- | |||
| TCC | 1GHz | 33 | 38 | -- | ||
| 3GHz | 29 | 33 | -- | |||
| 6GHz | 22 | 27 | -- | |||
| TXC | 1GHz | 28 | 33 | -- | ||
| 6GHz | 24 | 28 | -- | |||
| 12GHz | 20 | 23 | -- | |||
| Noise Figure (2) | TSC | 1GHz | -- | 33 | 37 | dB |
| 2GHz | -- | 36 | 39 | |||
| 3GHz | -- | 37 | 40 | |||
| TCC | 1GHz | -- | 35 | 38 | ||
| 3GHz | -- | 37 | 40 | |||
| 6GHz | -- | 42 | 45 | |||
| TXC | 1GHz | -- | 35 | 39 | ||
| 6GHz | -- | 41 | 45 | |||
| 12GHz | -- | 48 | 51 | |||
| Operating Current | +5V | -- | 65 | 800 | mA | |
| -5V | -- | 70 | 100 | |||
| Operating Voltage | +5V | 4.8 | 5 | 5.2 | VDC | |
| -5V | -5.2 | -5 | -4.8 | |||
| Weight | -- | 60 | 61 | g | ||
Note: （ 2 ）Test with Optical Receiver and 1.0-meter SMF-28 fiber.
Connector
| Type | Connector | |
| RF | TSC | SMA, 50Ω, Female |
| TCC | SMA, 50Ω, Female | |
| TXC | SMA, 50Ω, Female | |
| TYC | K Type (2.92mm, 50Ω), Female | |
| TUC | K Type (2.92mm, 50Ω), Female | |
| Optical | FC/APC (3) | |
| Optical Fiber Type | SMF-28(Standard) (3) | |
| Power | EMI Low Pass Filter, Feed Through Capacitor, Soldering Temperature Should not Exceed 300℃ and 3s | |
Note: （ 3 ）Other optical connector type or fiber type is also available upon request.

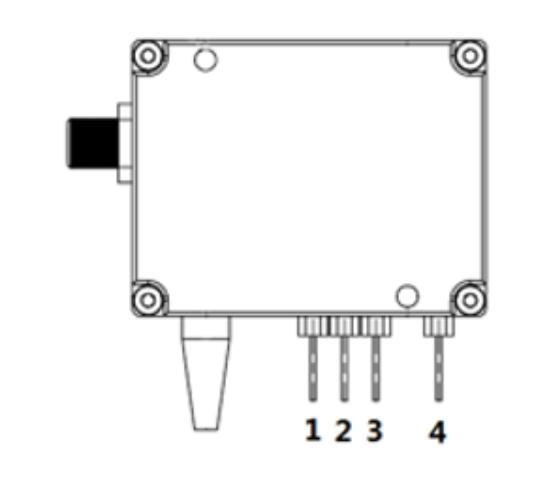

PIN Function
| PIN | Name | Direction | Note |
|---|---|---|---|
| 1 | +5V | Ⅰ | +5V DC Power |
| 2 | -5V | Ⅰ | -5V DC Power |
| 3 | GND | Ⅰ | GND |
| 4 | OP | O | Optical Power Monitor，TTL Level，Low Level（＜0.4V）is Optical Power Low，High Level（+5V）is Optical Power Normal. |
Heat Dissipation Requirements
In order to ensure proper performance, heat sinking and heat removal must be provided by the user to limit maximum temperature of the transmitter module.

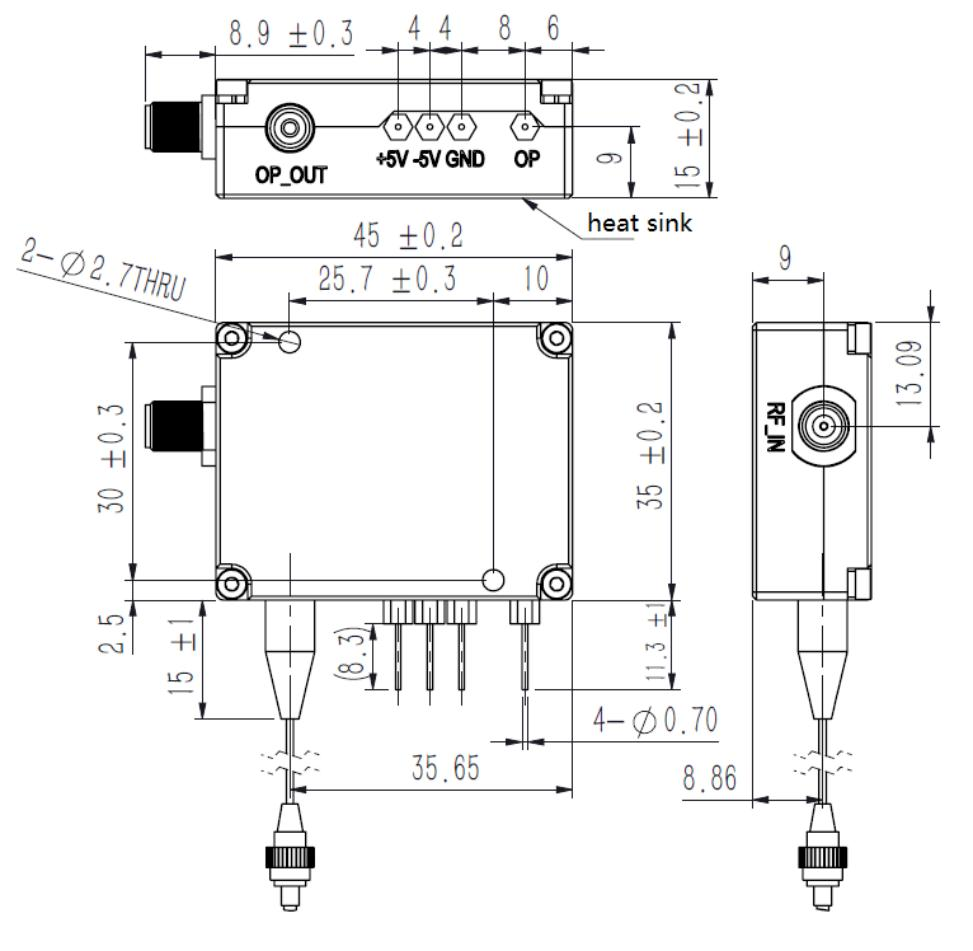

Mechanical (unit: mm)
Note: Heat is dissipated from the bottom of the module. M2.5 screws are used for module installation
Ordering Information
| OM | - | T | x | C | xxx | N | F | - | O | W | K0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Frequency Range（4）S：3GHz C：6GHz X：12GHz Y：16GHz U：18GHz | Laser Wavelength （5） 127：1270nm 129：1290nm … 137：1370nm 153：1530nm 155：1550nm xxC：xx is the ITU C band wavelength code number, see the table below | Optical Connector and Fiber TypeF：FC/APC SMF- 28(Standard) | OperatingTemperature RangeW：-40 to 70℃ |
Note: （ 4 ）The lower start frequency such as 9kHz is also available upon request.
（ 5 ）12GHz series modules are not include 1530nm wavelength.16GHz/18GHz series modules are not include 1530nm and ITU C band wavelength. Other optical wavelength is also available upon request.
ITU C band Wavelength Code Number Table
| xx | Frequency (THz) | Center Wavelength (nm) | xx | Frequency (THz) | Center Wavelength (nm) |
|---|---|---|---|---|---|
| 17 | 191.7 | 1563.86 | 40 | 194.0 | 1545.32 |
| 18 | 191.8 | 1563.05 | 41 | 194.1 | 1544.53 |
| 19 | 191.9 | 1562.23 | 42 | 194.2 | 1543.73 |
| 20 | 192.0 | 1561.42 | 43 | 194.3 | 1542.94 |
| 21 | 192.1 | 1560.61 | 44 | 194.4 | 1542.14 |
| 22 | 192.2 | 1559.79 | 45 | 194.5 | 1541.35 |
| 23 | 192.3 | 1558.98 | 46 | 194.6 | 1540.56 |
| 24 | 192.4 | 1558.17 | 47 | 194.7 | 1539.77 |
| 25 | 192.5 | 1557.36 | 48 | 194.8 | 1538.98 |
| 26 | 192.6 | 1556.55 | 49 | 194.9 | 1538.19 |
| 27 | 192.7 | 1555.75 | 50 | 195.0 | 1537.40 |
| 28 | 192.8 | 1554.94 | 51 | 195.1 | 1536.61 |
| 29 | 192.9 | 1554.13 | 52 | 195.2 | 1535.82 |
| 30 | 193.0 | 1553.33 | 53 | 195.3 | 1535.04 |
| 31 | 193.1 | 1552.52 | 54 | 195.4 | 1534.25 |
| 32 | 193.2 | 1551.72 | 55 | 195.5 | 1533.47 |
| 33 | 193.3 | 1550.92 | 56 | 195.6 | 1532.68 |
| 34 | 193.4 | 1550.12 | 57 | 195.7 | 1531.90 |
| 35 | 193.5 | 1549.32 | 58 | 195.8 | 1531.12 |
| 36 | 193.6 | 1548.51 | 59 | 195.9 | 1530.33 |
| 37 | 193.7 | 1547.72 | 60 | 196.0 | 1529.55 |
| 38 | 193.8 | 1546.92 | 61 | 196.1 | 1528.77 |
| 39 | 193.9 | 1546.12 |
