MR03 Series_OM-RxC000Nx-OWxx_Analog Optical Receiver with Pigtail
Model Number：OM-RxC000Nx-OWxx
Summarize：This analog optical receiver module is small in size and can operate up to 24GHZ with high response rate.
Tags：24GHZ High responsivity 5G Mobile Communication GPS signal transport Antenna remoting
Applications：
Product Features
- Small size：22mm*17mm*8.9mm
- High responsivity: typical 0.8 mA/mW @ 1310nm
- Operating frequency up to 24GHz
- Wide wavelength range from 800nm to 1650nm
- DC-coupled or AC-coupled optional and matched to 50 Ohm
Product Application
- 5G/4G/3G Mobile Communication
- Antenna remoting
- Satellite communications
- GPS signal transport
- Pulse signal transport
- Distributed antenna system
- High speed test and measurement
- Video signal distribution in HFC and FTTx Nodes
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Min. | Max. | Unit |
|---|---|---|---|---|---|
| Operating Temperature | Topr | -40 | +70 | °C | |
| Storage Temperature | Tstg | -40 | +85 | °C | |
| Saturation Input Power | Ps | -- | 10 | mW | |
| Forward Current | If | -- | 10 | mA | |
| Reverse Bias | Vr | PD | - | 20 | V |
| DC Operating Voltage | Vd | +5V pin | +4.7 | +5.5 | V |
| Dark Current | Id | 10 | nA | ||
| Relative Humidity | Hr | -- | -- | 95 | % |
| Pressure | Pr | -- | 86 | 106 | kPa |
| ESD | Human body model | - | Class 1B |
Note ：Operation beyond these absolute maximum conditions may degrade device performance, lead to device failure, shorter lifetime, and will invalidate the device warranty.
Electrical and Optical Characteristics
| Parameter | Symbol | Test Condition | Min | Typ. | Max | Unit | |
| Wavelength Range | λ | 800 | -- | 1650 | nm | ||
| Responsivity | R | 1310nm | 0.7 | 0.8 | -- | mA/mW | |
| 1550nm | 0.7 | 0.85 | -- | ||||
| Frequency Bandwidth（1） | BW | RCC | 0.01 | -- | 6 | GHz | |
| RXC | 0.01 | -- | 12 | ||||
| RUC | 0.01 | -- | 18 | ||||
| RKC | 0.01 | -- | 24 | ||||
| Ripple of Passband（2） | Flatness | RCC,0.1GHz~6GHz | -- | ±1 | ±1.2 | dB | |
| RXC,0.1GHz~12GHz | -- | ±1.2 | ±1.5 | ||||
| RUC,0.1GHz~18GHz | -- | ±1.5 | ±2 | ||||
| RKC,1GHz~24GHz | -- | ±1.7 | ±2.5 | ||||
| RF Return Loss | RL | RCC,0.1GHz~6GHz | -- | -12 | -9 | dB | |
| RXC,0.1GHz~12GHz | -- | -10 | -7 | ||||
| RUC,0.1GHz~18GHz | -- | -10 | -5 | ||||
| RKC | 0.1GHz~18GHz | -- | -10 | -5 | |||
| 18GHz~24GHz | -- | -5 | -3 | ||||
| Back Reflection | ORL | PD | -- | -35 | -- | dB | |
| Dark Current | Id | PD | -- | 5 | 10 | nA | |
| Operating Voltage | Vd | +5V Pin | 4.8 | 5 | 5.2 | V | |
| Power Consumption | Pdiss | +5V power supply | -- | 25 | 50 | mW | |
Note ：（1）AC Coupled and the lower start frequency such as 9kHz is available upon request.（2）The ripple of passband has deducted the ripple of optical Tx.
Fiber Specification
| Parameter | Typ. | Unit |
|---|---|---|
| Fiber Type | Single Mode | |
| Optical Connector Type | FC/APC（1） | |
| Pigtail Length | 1±0.1 | m |
| Minimum Bend Radius | 30（2） | mm |
Note ：（1）Other type optical connector available upon request ；（2） Standard SMF-28 fiber.
PIN Function
| PIN | Name | Direction | Note |
|---|---|---|---|
| 1 | GND | Ⅰ | GND |
| 2 | +5V | Ⅰ | +5V DC Power |
| 3 | RF | O | RF Out, SMA Female,50Ω |
Optical Receiver Top View

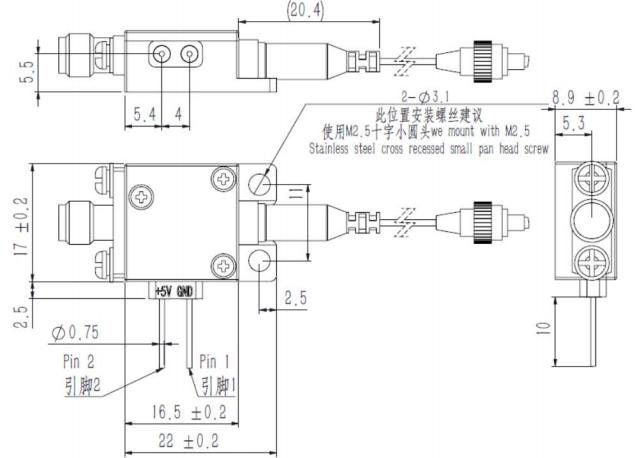

Mechanical (unit: mm)
Note ：Do not squeeze the M2.5 screws of the module to the optical component, otherwise it may cause the optical component to break.
Ordering Information
| OM | - | RxC | 000 | N | F | - | O | W | xx |
|---|---|---|---|---|---|---|---|---|---|
| OM：Optical Module | Frequency Range（1） RCC：0.01~6GHz RXC： 0.01~12GHz RUC： 0.01~18GHz RKC：0.01~24GHz | Wavelength：000: 800nm ~ 1650nm | Optical Connector and Fiber Type（2）： F： FC/APC SM | OperatingTemperature（3） W: -40to70℃ | Special： 00：AC- coupled 01： DC- coupled |
Note:(1)AC-coupled and the lower start frequency such as 9kHz is available upon request；（2）Other optical connector and fiber type is available upon request; (3) Other temperature range is available upon request.
